在庫あり 注目商品

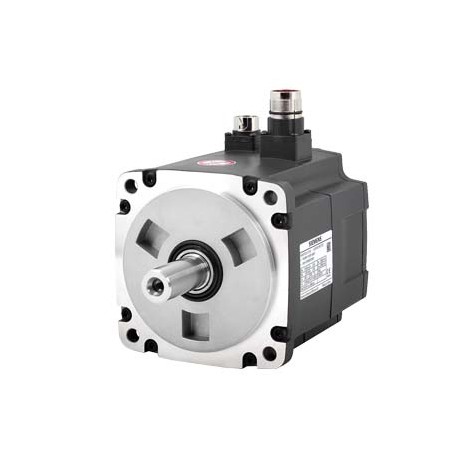

1FL6062-1AC61-0AA1
1FL6062-1AC61-0AA1 SIEMENS ****spare part**** SIMOTICS S-1FL6-1FL6 operating voltage 400 V 3 AC PN 1 kW NN 2..
$0.00米ドル
3698 在庫あり
主な仕様
:****spare part**** SIMOTICS S-1FL6-1FL6 operating voltage 400 V 3 AC PN=1 kW; NN=2000 rpm, M0=6 Nm; MN=4.78 Nm shaft height 65 mm incremental encoder TTL 2500 incr./rev. with feather key, tolerance N without holding brake degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70&V90
EAN:Not available
UPC:887621438142
注記:Product is no longer availableSucessor:Substitute is 1FL6062-1AC61-2AA1. Not compatible with old cables.If you need assistance please contact our local Siemens office
サプライヤー情報
SIEMENS
製品: 367174
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| ****spare part**** SIMOTICS S-1FL6-1FL6 operating voltage 400 V 3 AC PN=1 kW; NN=2000 rpm, M0=6 Nm; MN=4.78 Nm shaft height 65 mm incremental encoder TTL 2500 incr./rev. with feather key, tolerance N without holding brake degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70&V90 | |
| EAN | Not available |
| UPC | 887621438142 |
| 注記 | Product is no longer availableSucessor:Substitute is 1FL6062-1AC61-2AA1. Not compatible with old cables.If you need assistance please contact our local Siemens office |
| グループコード | R2S3 |
| メタルファクター | ------71 |
| 日付2023年10月4日 | Subject to change without notice© Copyright Siemens 2023 |
| 製品グループ | 5686 |
| 製品クラス | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| 数量単位 | 1 Piece |
| 商品コード | 85015100 |
| 製品ファミリー | Not available |
| 正味重量（kg） | 8,300 Kg |
| 原産国 | China |
| LKZ_FDB/カタログID | NC81 |
| PLM有効日 | Product discontinued since: 01.10.2023 |
| 梱包数量 | 1 |
| 梱包寸法 | 269,00 x 392,00 x 290,00 |
| 製品説明 | ****spare part**** SIMOTICS S-1FL6-1FL6 operating voltage 400 V 3 AC PN=1 kW; NN=2000 rpm, M0=6 Nm; MN=4.78 Nm shaft height 65 mm incremental encoder TTL 2500 incr./rev. with feather key, tolerance N without holding brake degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70&V90 |
| 製品ライフサイクル（PLM） | PM490:Start of final year of support |
| 輸出管理規制 | ECCN : N / AL : N |
| 工場渡し標準リードタイム | 2 Day/Days |
| 原材料割増金 | None |
| パッケージサイズの測定単位 | MM |
| 品番（市場向け品番） | 1FL6062-1AC61-0AA1 |
| WEEE（2012/19/EU）回収義務 | Yes |
| 地域別価格グループ / 本社価格グループ | S60 / 7A6 |
| RoHS指令に基づく物質制限への準拠 | Since: 01.01.2018 |
| REACH第33条 候補者の最新リストに従って通知する義務 | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
