3RW5247-2AC14

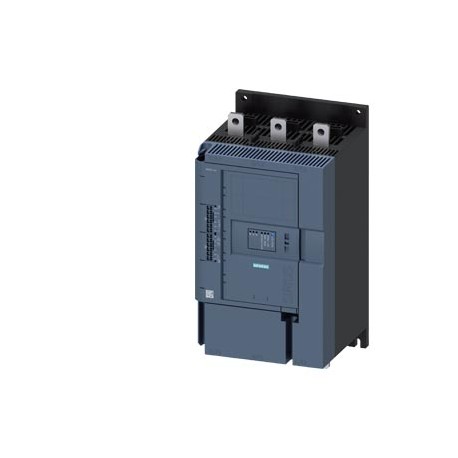

3RW5247-2AC14 SIEMENS SIRIUS soft starter 200-480 V 470 A, 110-250 V AC spring-type terminals Analog output
$0.00米ドル
3468 在庫あり
主な仕様
:VersionClassificationeClass627-37-09-07eClass7.127-37-09-07eClass827-37-09-07eClass927-37-09-07eClass9.127-37-09-07ETIM5EC000640ETIM6EC000640ETIM7EC000640ETIM8EC000640IDEA44740UNSPSC1539-12-15-21
EAN:4047621038049
UPC:804766689949
エティム:5
サプライヤー情報
SIEMENS
製品: 367174
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| VersionClassificationeClass627-37-09-07eClass7.127-37-09-07eClass827-37-09-07eClass927-37-09-07eClass9.127-37-09-07ETIM5EC000640ETIM6EC000640ETIM7EC000640ETIM8EC000640IDEA44740UNSPSC1539-12-15-21 | |
| EAN | 4047621038049 |
| UPC | 804766689949 |
| エティム | 5 |
| アイデア | 4 |
| 国連科学委員会 | 15 |
| eクラス | 6 |
| グループコード | R711 |
| メタルファクター | LAO----- |
| 製品グループ | 4981 |
| 製品クラス | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| 数量単位 | 1 Piece |
| 商品コード | 85371098 |
| 製品ファミリー | 3RW52 soft starters |
| 正味重量（kg） | 12,475 Kg |
| 原産国 | Czech Republic |
| LKZ_FDB/カタログID | CC-IC10 |
| 梱包数量 | 1 |
| 関数 (EF000030) | Single direction |
| 梱包寸法 | 328,00 x 502,00 x 333,00 |
| 製品説明 | SIRIUS soft starter 200-480 V 470 A, 110-250 V AC spring-type terminals Analog output |
| 製品ライフサイクル（PLM） | PM300:Active Product |
| ディスプレイ付き（EF000458） | - |
| リリースクラス（EF006668） | Adjustable |
| トルク制御（EF009215） | false |
| 輸出管理規制 | AL : N / ECCN : N |
| 内部バイパス（EF009214） | true |
| 工場渡し標準リードタイム | 100 Day/Days |
| 原材料割増金 | None |
| パッケージサイズの測定単位 | MM |
| 保護等級（IP）（EF005474） | IP00 |
| 品番（市場向け品番） | 3RW5247-2AC14 |
| 定格動作電圧Ue（EF002418） | ['200', '480'] |
| 作動用電圧タイプ（EF008242） | AC |
| 保護等級（NEMA）（EF011959） | - |
| WEEE（2012/19/EU）回収義務 | Yes |
| 統合モーター過負荷保護（EF007297） | - |
| 定格制御電源電圧 Us（DC）（EF003980） | ['-', '-'] |
| 定格動作電流Ie（40℃ Tu時）（EF007039） | 470 |
| 地域別価格グループ / 本社価格グループ | 42S / 42S |
| 定格制御電源電圧 Us（AC 50HZ）（EF003978） | ['110', '250'] |
| 定格制御電源電圧 Us（AC 60HZ）（EF003979） | ['110', '250'] |
| 定格周囲温度（ディレーティングなし）（EF007074） | 40 °C |
| 定格出力3相モーター、インライン、230 V (EF007053) | 132.0 |
| 定格出力3相モーター、インライン、400 V (EF007054) | 250.0 |
| 定格出力三相モータ、内側デルタ、230 V (EF007055) | 250.0 |
| 定格出力三相モータ、内側デルタ、400 V (EF007056) | 400.0 |
| RoHS指令に基づく物質制限への準拠 | Since: 15.02.2018 |
| REACH第33条 候補者の最新リストに従って通知する義務 | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dibutylbis(pentane-2... CAS-No. 22673-19-4 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dibutylbis(pentane-2,4-dionato-O,O')tinBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dodecamethylcyclohex... CAS-No. 540-97-6 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dodecamethylcyclohexasiloxane (D6)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dodecachloropentacyclo[12... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereofBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
製品説明
SIRIUS soft starter 200-480 V 470 A, 110-250 V AC Spring connection Analog output. Manufactured to order. Non-Cancelable Non-Returnable.
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
