在庫あり 注目商品
3VA2040-8HM46-0AA0

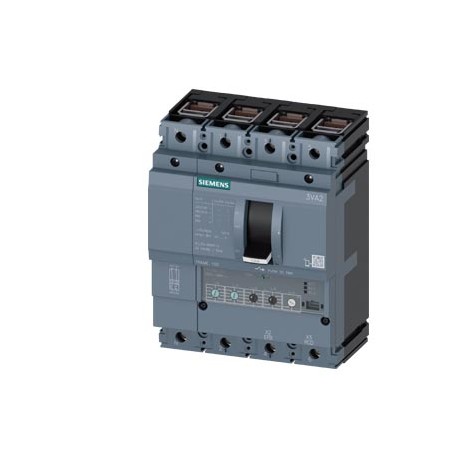

3VA2040-8HM46-0AA0 SIEMENS circuit breaker 3VA2 IEC frame 100 breaking capacity class L Icu 150kA @ 415V 4-p..
$0.00米ドル
4518 在庫あり
主な仕様
:VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01
EAN:4042948818015
UPC:804766442049
エティム:5
サプライヤー情報
SIEMENS
製品: 367174
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| VersionClassificationeClass627-37-04-09eClass7.127-37-04-09eClass827-37-04-09eClass927-37-04-09eClass9.127-37-04-09ETIM5EC000228ETIM6EC000228ETIM7EC000228ETIM8EC000228IDEA44850UNSPSC1539-12-16-01 | |
| EAN | 4042948818015 |
| UPC | 804766442049 |
| エティム | 5 |
| アイデア | 4 |
| 国連科学委員会 | 15 |
| eクラス | 6 |
| グループコード | P360 |
| メタルファクター | LOA----- |
| 製品グループ | 5374 |
| 製品クラス | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| 数量単位 | 1 Piece |
| 商品コード | 85362010 |
| 製品ファミリー | 3VA Molded Case Circuit Breakers up to 1600 A, IEC |
| 正味重量（kg） | 3,200 Kg |
| 原産国 | Czech Republic |
| LKZ_FDB/カタログID | LV10.1 |
| 梱包数量 | 1 |
| 梱包寸法 | 169,00 x 200,00 x 145,00 |
| 製品説明 | circuit breaker 3VA2 IEC frame 100 breaking capacity class L Icu=150kA @ 415V 4-pole, line protection ETU330, LIG, In=40A overload protection Ir=16A...40A short-circuit protection Ii=1.5...12 x In N conductor protection adjustable (OFF, 100%) ground-fault protection Ig=0.4...1 x In= tg=0.1/0.3s clamp connection |
| 製品ライフサイクル（PLM） | PM300:Active Product |
| 定格電圧（EF003977） | ['690', '690'] |
| 輸出管理規制 | AL : N / ECCN : EAR99 |
| 極数（EF001391） | 4 |
| 工場渡し標準リードタイム | 40 Day/Days |
| 原材料割増金 | None |
| パッケージサイズの測定単位 | MM |
| デバイス構築（EF008240） | Built-in device fixed built-in technique |
| モータードライブオプション（EF007386） | true |
| モータードライブ内蔵（EF006697） | false |
| 制御要素の種類 (EF006976) | Rocker lever |
| 保護等級（IP）（EF005474） | IP40 |
| 品番（市場向け品番） | 3VA2040-8HM46-0AA0 |
| 定格永久電流 Iu (EF001389) | 40.0 |
| 低電圧リリース付き（EF007518） | - |
| WEEE（2012/19/EU）回収義務 | Yes |
| 消灯インジケーター付き（EF007006） | - |
| 過負荷解除電流設定（EF002336） | ['16', '40'] |
| 統合型地絡保護（EF007296） | true |
| 保護ユニットを備えた完全なデバイス（EF008906） | true |
| DINレール（トップハットレール）取り付けオプション（EF008904） | true |
| 地域別価格グループ / 本社価格グループ | 12P / 1CB |
| DINレール（トップハットレール）取り付けに適しています（EF007250） | true |
| 主回路の電気接続の種類（EF006819） | Frame clamp |
| 主電流回路の接続位置（EF006671） | Front side |
| 調整範囲遅延なし短絡解除（EF007131） | ['60', '480'] |
| 切替接点としての補助接点の数（EF003531） | 0 |
| 常開接点としての補助接点の数（EF001376） | 0 |
| 常閉接点としての補助接点の数（EF001377） | 0 |
| 調整範囲短期遅延短絡解放（EF007129） | ['-', '-'] |
| 定格短絡遮断容量 lcu 400 V、50 Hz (EF007048) | 150.0 |
| RoHS指令に基づく物質制限への準拠 | Since: 01.06.2012 |
| REACH第33条 候補者の最新リストに従って通知する義務 | Perfluorobutane sulfonic ... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Perfluorobutane sulfonic acid (PFBS) and its saltsBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Silicic acid, lead saltBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
製品説明
AUTOM SWITCH. 3VA2 IEC SIZE 100 CUTTING POWER CLASS L ICU=150KA @ 415 V 4 POLOS, PROTEC. DISTRIBUTIONS ETU330, LIG, IN=40A OVERLOAD PROTECTION IR=16A ... 40A SHORT CIRCUIT PROTECTION II=1,5...12 X IN
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
