6SL3223-0DE31-8AA0

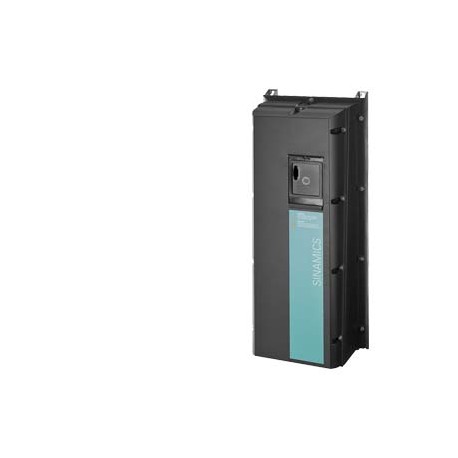

6SL3223-0DE31-8AA0 SIEMENS SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protec..
$0.00米ドル
4146 在庫あり
主な仕様
:Not available
EAN:4019169458221
UPC:040892636086
注記:Product is no longer available. Successor: 6SL3223-0DE31-8AG1
サプライヤー情報
SIEMENS
製品: 367174
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| Not available | |
| EAN | 4019169458221 |
| UPC | 040892636086 |
| 注記 | Product is no longer available. Successor: 6SL3223-0DE31-8AG1 |
| 後継 | 6SL3223-0DE31-8AG1 |
| 定価 | Show prices |
| 価格グループ | 347 |
| メタルファクター | None |
| 製品グループ | 3576 |
| 製品クラス | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| 数量単位 | 1 Piece |
| 商品コード | 85044088 |
| 顧客価格 | Show prices |
| 製品ファミリー | Not available |
| 正味重量（kg） | 9,5 Kg |
| 原産国 | Great Britain |
| LKZ_FDB/カタログID | D11.1SD |
| PLM有効日 | Product discontinued since: 10.04.2018 |
| 梱包数量 | 1 |
| 梱包寸法 | 0,259 x 0,686 x 0,296 |
| 製品説明 | SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 18.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 °C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher |
| 後継者の説明 | SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 18.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher |
| 製品ライフサイクル（PLM） | PM490:Start of final year of support |
| 輸出管理規制 | ECCN : 3A999A / AL : N |
| 工場渡し標準リードタイム | 35 Day/Days |
| 原材料割増金 | None |
| パッケージサイズの測定単位 | M |
| 製品寸法（幅×長さ×高さ） | Not available |
| REACH第33条 情報提供義務 | Lead > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| 品番（市場向け品番） | 6SL3223-0DE31-8AA0 |
| WEEE（2012/19/EU）回収義務 | Yes |
| RoHS指令に基づく物質制限への準拠 | Since: 01.07.2006 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
