7ML5632-8DA31-0GD0

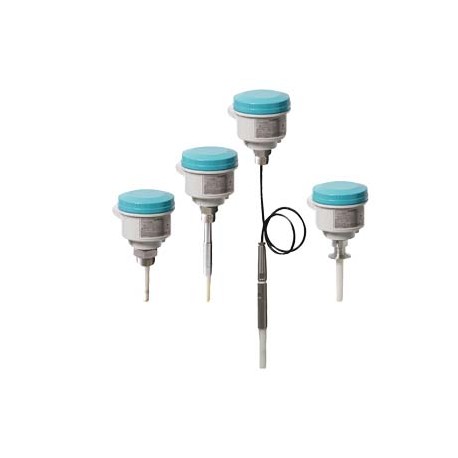

7ML5632-8DA31-0GD0 SIEMENS Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects le..
$0.00米ドル
4699 在庫あり
主な仕様
:VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03
EAN:Not available
UPC:Not available
eクラス:5.1
サプライヤー情報
SIEMENS
製品: 367174
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| VersionClassificationeClass5.127-20-05-03eClass627-20-05-03eClass7.127-20-05-03eClass827-20-05-03eClass927-20-05-03eClass9.127-20-05-03 | |
| EAN | Not available |
| UPC | Not available |
| eクラス | 5.1 |
| 製品グループ | 4717 |
| 製品クラス | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| 数量単位 | 1 Piece |
| 商品コード | 90261029 |
| 製品ファミリー | Not available |
| 正味重量（kg） | 2.000 Kg |
| 原産国 | Germany |
| LKZ_FDB/カタログID | FI01-4 |
| 梱包数量 | 1 |
| 梱包寸法 | Not available |
| 製品説明 | Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Sanitary 316L (1.4404) stainless steel: 2 1/2" sanitary fitting clamp Probe length: (length from process connection face): Compact, 98 mm (3.86") Thermal Isolator: Remote mount electronics with 5 m (197") of cable and mouting bracket Wetted Seals: FFKM (for process temperatures above -20 C (-4 F)) Probe Material: 316L Stainless Steel with PPS probe body Approvals: Explosion Proof Enclosure With IS Probe CSA/FM Class I, Div. 1, Gr. A, B, C, D CSA/FM Class II, Div. 1, Gr. E, F, G CSA/FM Class III T4 Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP68 . |
| 製品ライフサイクル（PLM） | PM300:Active Product |
| 輸出管理規制 | ECCN : EAR99 / AL : N |
| 工場渡し標準リードタイム | On request |
| パッケージサイズの測定単位 | Not available |
| 製品寸法（幅×長さ×高さ） | Not available |
| 品番（市場向け品番） | 7ML5632-8DA31-0GD0 |
| WEEE（2012/19/EU）回収義務 | Yes |
| RoHS指令に基づく物質制限への準拠 | Since: 20/07/17 |
| REACH第33条 候補者の最新リストに従って通知する義務 | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
