ADD-155A

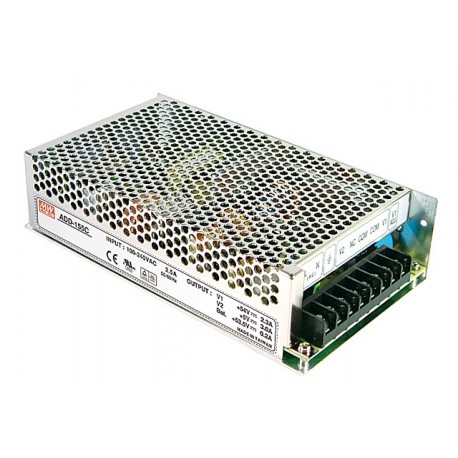

ADD-155A MEANWELL AC-DC Enclosed power supply with UPS function, Output 13.8VDC / 10.5A +5VDC / 3A +13.3VDC ..
$0.00米ドル
3661 在庫あり
主な仕様
おお:1, 2, 3
名前:ADD-155A
ストック:Yes
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| おお | 1, 2, 3 |
| 名前 | ADD-155A |
| ストック | Yes |
| 形式 | Box |
| シリーズ | ADD-155 |
| 出力1 | +5 |
| 出力2 | +12 |
| 承認 | CE, UL |
| 電力（W） | 152,70 |
| サブフォーマット | Grid |
| 幅（mm） | 110.00 |
| 高さ（mm） | 50.00 |
| アプリケーション | Building automation, Industrial, Telecommunications |
| 電池のタイプ | Lead, AGM, Wet |
| メーカー | MEAN WELL |
| 製品タイプ | UPS |
| 充電段階 | Two |
| 隔離（V） | 3.000,00 |
| ピーク電力（W） | 152.7 |
| 入力コネクタ | Screw-Type |
| 長文/背景 | 199.00 |
| 長い説明 | UPS input switches and 2 outputs in continuous.Format box of the grid.Range of universal input88-264vac. 47-63Hz.Outputs:+5vdc:Minimum intensity of output 0A.Maximum output current 3 Amperes. Peak 3A.+12vdc:Output voltagefor the loadwith power: 13,8 Vdc.Output voltage in battery mode: voltage of the battery.Output intensity9.5 To. Peak At 10.5 A.Float voltageadjustable12-14,5 Vdc. (The setting of the float voltage also adjusts the output voltage of power supply).Intensity of load0.5 To.Power:152,7 W.Type of batteries:Gel, AGM and wet.Battery capacity:1-3Ah.Efficiency typical:78%at full load with power.Protection against deep discharge of the batteries.No cut in output in the step feed mode to battery mode. 0ms transfer time.LED to indicate proper output DC-OK.Working temperature: from-10up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:199 x 110 x 50.2 years of warranty.Manufacturer: MEAN WELL.Series ADD-155 are Upss with input in ac and with two outputs in continuous with autonomy in case of power failure. When there is mains power the computer gives two outputs stable while charging the battery. In case of a power failure it keeps the outputs fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage. It allows us to feed loads with different voltages from a network or from batteries in the event of a power failure.These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse). |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 2,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
UPS input switches and 2 outputs in continuous.
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
