AIG03TQ13DE

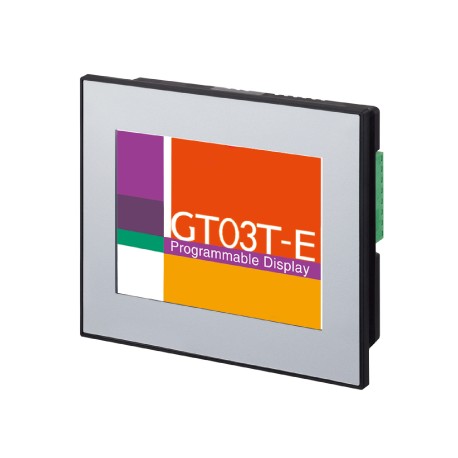

AIG03TQ13DE PANASONIC Touch panel GT03T-E 3.5", IP67, -20°C to + 60°C, Anti ultraviolet rays, Non-glare trea..
$0.00米ドル
3975 在庫あり
主な仕様
アイテム:Specifications
詳細:GT03T-E
製品:Programmable Display
正味重量:170 g approx.
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| 詳細 | GT03T-E |
| 製品 | Programmable Display |
| 正味重量 | 170 g approx. |
| 部品番号 | AIG03TQ13DE |
| 電源 | 24V DC |
| 製品名 | GT03-E |
| 製品番号 | AIG03TQ13DE |
| タッチキー寿命 | 1 million operations or more (at +25 ℃+77 ℉) |
| 周囲の湿度 | 10 to 90 % RH (at 25 ℃77 ℉), (No dew condensation allowed) |
| 機能:ブザー | Installed |
| 耐衝撃性 | 147m/s2, 3 times in each of the X, Y and Z directions |
| 保管湿度 | 10 to 90 % RH (at 25 ℃77 ℉), (No dew condensation allowed) |
| ディスプレイ:バックライト | White LED |
| 消費電力 | 3.1 W or less |
| COM. ポート:プロトコル | Our FP series supported, General-purpose serial interface supported, and Other companies' PLC supported (Refer to the "PLC COMPATIBILITY TABLE" for manufacturersand models.) |
| 通信ポート | RS-232C |
| ディスプレイ:解像度 | 320 (W) × 240 (H) dots |
| 機能:グラフィックス | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| 周囲温度 | -20 to +60 ℃-4 to +140 ℉Note: Please use within a temperature range of - 20 to + 55 ℃- 4 to + 131 ℉when horizontally installed and vertically installed in a portrait orientation and when using battery. |
| COMポート:コネクタ | Connector terminal block (8 pins) |
| 機能:言語 | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| 保管温度 | -20 to +60 ℃-4 to +140 ℉ |
| 機能:フォントの種類 | Fixed (GTWIN) : 8 × 8, 16 × 8, and 16 × 16 dots, Characters- can be displayed in the 1, 2, 4, 8 or 16 times width or height.True Type (GTWIN): 10 to 192 dots, Windows®: 10 to 240 dots |
| メモリバックアップ:メモリ | SRAM |
| タッチキーの解像度 | Free layout (8 dots min.) |
| 耐振動性 | 5 to 8.4 Hz, amplitude 3.5 mm0.138 in, 8.4 to 150 Hz, acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave / min.) |
| ディスプレイ:ディスプレイカラー | 4,096 colors |
| ディスプレイ:ディスプレイデバイス | TFT color LCD |
| ユーザーのメモリ:容量 | 12 Mbyte |
| ユーザーの記憶:メモリ | F-ROM |
| 動作電圧範囲 | 21.6 to 26.4 V DC |
| 表示:表示可能領域 | 70.6 (W) × 52.9 (H) mm2.780 (W) × 2.083 (H) in |
| 環境耐性 | IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| 機能:時計機能 | Provided with a built-in clock. (Can also refer to and display a PLC clock.)Note: Buy the backup battery (AFPX-BATT) . |
| 機能:部品機能 | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history(Note), Custom parts (messages, lamps, switches)(Note:The alarm history function is not supported for the GT03M-E.) |
| 機能:その他の機能 | Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging, SD recipeNote:The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| 機能:画面作成 | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10Note: The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| タッチキーの操作力 | 0.8 N or less |
| 機能:スルー機能 | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| 機能:画面数 | 180 screens approx.Note: The number of screens that can be registered varies according to the registered contents. |
| 機能:画面設定番号 | Base screens: No. 0 to 3FFKey board screens: No. 0 to 7Login screens: No. 0 to F |
| メモリバックアップ:バックアップバッテリー | Lithium battery (replaceable) AFPX-BATTNote: Does not include with product. |
| 重畳ノイズ抑制 | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) |
| 機能:コントラスト調整 | Unnecessary |
| COMポート:通信規格 | Conforms to RS-232C |
| 画面データ転送インターフェース:プロトコル | Our dedicated protocol |
| 画面データ転送インターフェース:コネクタ | USB Mini-B |
| 機能:バックライトの明るさ調整 | Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC. |
| 機能:自動通信設定 | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| COMポート:外部通信条件 | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, and 115,200 bpsData bits: 7 or 8 bitsParity: None, Odd, EvenStop bits: 1 bit |
| 画面データ転送インターフェース:通信規格 | USB1.1 |
製品説明
GT03T-E 3.5" Touch Screen, Silver Frame, IP67, -20°C to +60°C, UV Filter, Anti-Glare Treatment, 4096 Colors, 320x240 Dots, RS232 + USB-B (Prog.), 24 DDC, SD/SDHC Card
