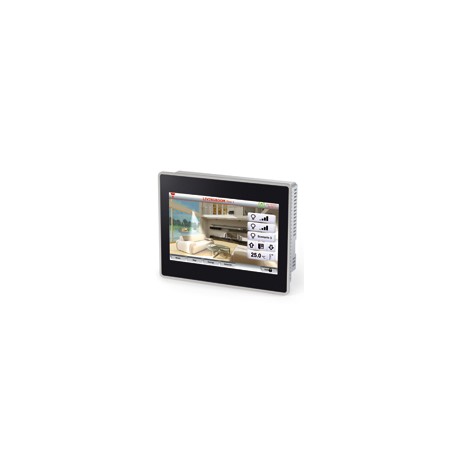

BTM-T7-24

SmartHUBHome Automation Touchscreen and Energy Data LoggerTypes BTM-T7-24, BTM-T4-24• High definition 7” and 4.3” colour touchscreen• Easy setup of graphic pages and functions with the powerful software Wizard• Remote access• Activation of internet links through touch buttons• Alarms management• Support viewing from IP cameras• Ready for Modbus TCP/IP• Gateway KNX/EIB by means of a plug-in moduleBTM-KNXBTM-T7-24BTM-T4-24Product DescriptionOrdering KeyBTM-T7-24SmartHUB is a completely configurable touch display. It is available in two versions,7’’ and 4.3’’ wide, featuring a bright TFT widescreen (16:9) displaywithLED backlight. By means of the configura- tionsoftware,theinstaller can create his own HMIRTU orfrominverterswith Modbus RTU communica- tioncapability. Itoffersa wide range of analysis options: daily, monthly and annual graphs,relative and absolute yields, monetary yields, etc.Home/Building automationDisplayInchesPower supplyType SelectionActive display area ResolutionSupply: 24 VDCinterface or adaptthe tem-Connected via Modbusplate downloadable from the CarloGavazziwebsite, definetheelectricalvalues he needs to show/log,con- figure any Modbus RTU device very easily by just reading a csv file, read theTCP/IP to the Carlo Gavazzi smart-house controller, SmartHUB is an elegant interfacewhichcancontrol all the home automation functions such as lights, scenarios, temperature,7” diagonal 800 x 480 pixelBTM-T7-244.3” diagonal480 x 272 pixelBTM-T4-24Optional Plug-in *Module typeApplication Modulesmart-house configurationrollerblinds, alarms,… andfile and link the smart-house variable to images/pushbut- ton.Energy monitoring SmartHUBshowsand logs the data collectedfrom our EnergyMeteronModbuscan give information about everything that is happening in a house.* Optional plug-in BTM- KNX provides a gateway betweenSmartDupline and KNX/EIB bus.External plug-inKNX/EIBBTM-KNXSupply SpecificationsPower supply voltage24 VDC (18 to 30 VDC) BTM-T7-24 24 VDCBTM-T4-24 24 VDCBTM-KNX By BTM-Tx-24SpecificationsOperating SystemWindows CE 6.0DisplayType TFT ResolutionCurrent consumption 0.7 A at 24 VDC (max.)CPU ARM, 600 MHz User Memory128 MB Flash RAM 256 MB DDRActive display areaT7800 x 480 pixelT4480 x 272 pixelT77” diagonalT44.3” diagonalFront PanelTouch screen Analogue resistiveSystem LEDs 1COM PortsRS-232,RS-485,RS-422 software configurableColours64K BacklightLEDBrightness150 cd/m2 typ. Dimming YesEthernet Port2 10/100 Mbit with integrated switchUSB Port 1 host interface, version 2.0Specifications are subject to change without notice(22.04.2014)1
