CLG-150-12C

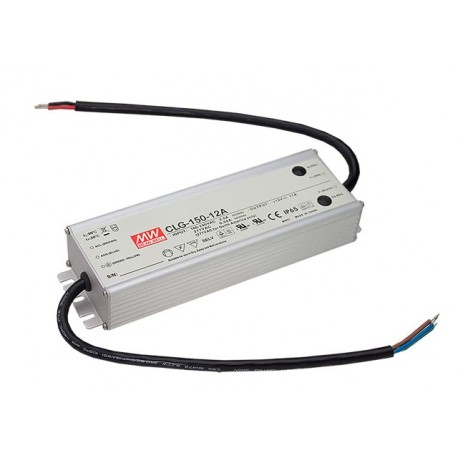

CLG-150-12C MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with PFC, Output 12VDC / 11A, IP00, ter..
$0.00米ドル
4396 在庫あり
主な仕様
名前:CLG-150-12C
州:Do not Use for New Designs
形式:Box
シリーズ:CLG-150
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | CLG-150-12C |
| 州 | Do not Use for New Designs |
| 形式 | Box |
| シリーズ | CLG-150 |
| 承認 | CCC, CE, PSE, UL |
| 電力（W） | 132,00 |
| 幅（mm） | 68.00 |
| 高さ（mm） | 38.80 |
| AC入力最大 | 295,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | One hundred thirty two |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 229.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal box.Input range90-295Vca47-63Hz.Output in constant current11A.Adjustable by external potentiometer (5,5-11A).Range of output voltage with current mode constant9-12v dcaccording to demand load.The output voltage in voltage mode constant12vdc.Adjustable by external potentiometer (9-13vdc).Power:132W.Efficiency typical:88%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current. Connection terminals for input and output.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-30ºCup+70ºC.Dimensions (Length x Width x Height):229 x 68 x 38,8 mm3 years of warranty.Manufacturer: MEAN WELL.The series CLG are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source. This version CLG-C has connection terminals of input and output.You can also work in voltage mode constant giving a fixed voltage of 12V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing water-tight. The series CLG has a high reliability with active PFC. Burn test at 100% load. Suitable for applications of LED lighting, signage, mobile, and public lighting in dry environments, humid, and wet conditions . Complies with the requirements of security at the global level for lighting. |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
| 出力電流 mA | 5500, 6000, 7000, 8000, 9000, 10000, 11000 |
| 最小出力強度（mA） | 5.500,00 |
| 出力最大強度（mA） | 11.000,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
