CLG-150-36A

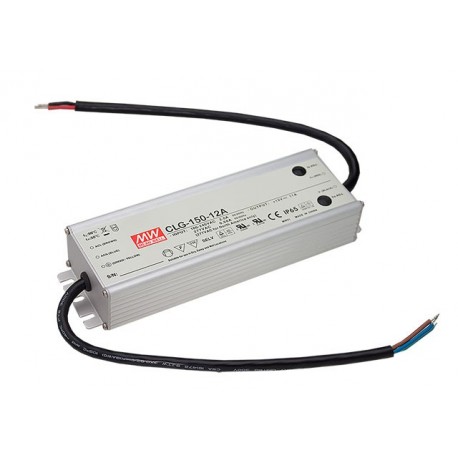

CLG-150-36A MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with PFC, Output 36VDC / 4.2A, IP65, ca..
$0.00米ドル
4146 在庫あり
主な仕様
名前:CLG-150-36A
州:Do not Use for New Designs
形式:Box
シリーズ:CLG-150
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | CLG-150-36A |
| 州 | Do not Use for New Designs |
| 形式 | Box |
| シリーズ | CLG-150 |
| 承認 | CCC, CE, PSE, UL |
| 電力（W） | 151,20 |
| サブフォーマット | IP65 |
| 幅（mm） | 68.00 |
| 高さ（mm） | 38.80 |
| AC入力最大 | 295,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | 151.2 |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 222.20 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range90-295Vca47-63Hz.Output in constant current4,2 A.Adjustable by external potentiometer (2,1-4,2 A).Range of output voltage with current mode constant27 to 36Vccaccording to demand load.The output voltage in voltage mode constant36Vcc.Adjustable by external potentiometer (31-41Vcc).Power:151,2 W.Efficiency typical:91%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-30ºCup+70ºC.Dimensions (Length x Width x Height):222,2 x 68 x 38,8 mm3 years of warranty.Manufacturer: MEAN WELL.The series CLG are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing IP65. The series CLG has a high reliability with active PFC. Burn test at 100% load. Suitable for applications of LED lighting, signage, mobile, and public lighting in dry environments, humid, and wet conditions . Complies with the requirements of security at the global level for lighting.Include cable approved for Europe (VDE) , Usa (UL), Korea (KC), Taiwan (BSMI) , China (CCC), Brazil (IEC 60245-4 ), Australia (RCM) and Japan (PSE). |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
| 出力電流 mA | 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000 |
| 最小出力強度（mA） | 2.100,00 |
| 出力最大強度（mA） | 4.200,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
