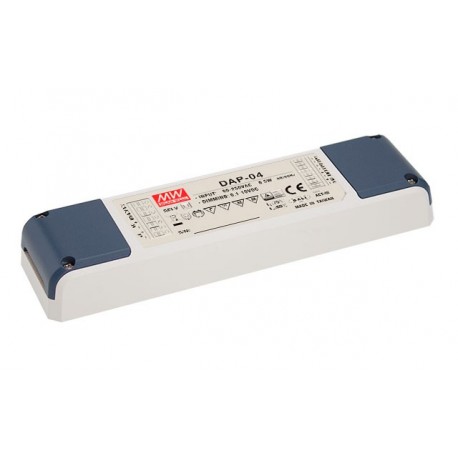

DAP-04-S01

技術仕様

パラメータ	価値
名前	DAP-04-S01
州	Recommended Model
ストック	Yes
形式	Box
シリーズ	DAP-04-S01
承認	EC, MM
サブフォーマット	IP20
幅（mm）	46.00
高さ（mm）	23.00
アプリケーション	Building automation, Lighting
メーカー	MEAN WELL
製品タイプ	Protocol converters
隔離（V）	3.750,00
出力信号	10V PWM
入力コネクタ	Quick Connector
長文/背景	165.00
長い説明	Converter DALI protocol and signal push button 1-10V.For regulation of the drivers of MEAN WELL.Format in plastic box.Range of universal input90-305Vca. 47-63Hz.Input signals:DALIorpush-button.Output signal:10V PWM(configurable as 1 or 4 PWM outputs)Configurable by jumper in 1 or 4 DALI addresses.Curve linear dimming or logarithmic (IEC62386-207).Regulation range: 1-100%.Class II non-grounded.Relay ON/OFF control for cutting ac power.Consumption without load <0.5 W.Working temperature: from-30ºCup+60 ° Cof ambient temperature.Dimensions (Length x Width x Height) [mm]:165 x 46 x 23.3 years warrantyManufacturer: MEAN WELL.The DAP-04-S01 is a gateway DALI protocol signal of 10V PWM (pulse width modulation). With this device we can regulate by means of the DALI protocol drivers-dimmable with PWM signal MEAN as WELL as the series PWM HLG-B, ELG-B, ELGT-B, NPF-D, LPF-D, HBG-B... this way even without a driver adjustable directly by the DALI protocol can be integrated in the bus with the DAP-04-S01.This equipment also allows a pushbutton input that also enables us to regulate the drivers of MEAN WELL dimmable by signal 10V PWM using a simple push button. This is many times more simple and aesthetic to use a regulator 1-10V. The majority of manufacturers of mechanisms are mechanisms of the push-button (normally open) in all ranges and colors, while regulators 1-10V typically have a more limited supply. So we can maintain the aesthetics of the installation. The DAP-04-S01 supports input from multiple buttons using a cable less than in the conventional systems, so that in a simple way we can regulate the drivers with any number of push-buttons.The DAP-04-S01 can be configured using a jumper as a team of a DALI address or 4-address. In the case of being configured as a DALI address only we will have a PWM output on channel 1 and in the case of setting it up as a 4 way will have 4 PWM outputs independent 4 channels output. This way if it is not necessary we can save the number of DALI addresses used.In addition each output of the DAP-04-S01 can connect up to 20 drivers of MEAN WELL dimmable. With what with a DAP-04-S01 can control up to 80 drivers (20 for each output channel) by using the DALI protocol or by using the push button.It also incorporates a relay, 8 amps that we can use to shut down literally the drivers connected. So the drivers that are 1-10V and that by regulation we can not turn them off physically, we can use the relay AC to turn off. This relay is associated with only the first DALI address. Although the relay is prepared to handle peaks is not recommended to connect more than 3-4 drivers since the peak start-up current of the drivers can be a problem for the relay. This can be solved by adding a current limiter ESB at the exit of the same or using another relay of external power.The DAP-04-S01 is the perfect solution to integrate drivers adjustable systems DALI or to regulate them conveniently by a push button.
出力コネクタ	Quick Connector
保証期間（年）	3,00
原産国	China

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Converter DALI protocol and signal push button 1-10V.
