DRA-60-24

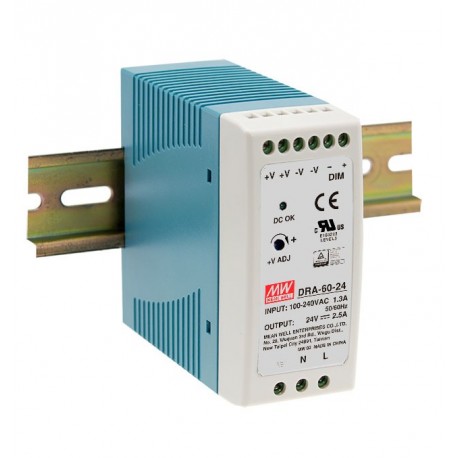

DRA-60-24 MEANWELL AC-DC Industrial DIN rail power supply, Output 24VDC / 2.5A, Dimming 0-10VDC PWM Resistan..
$0.00米ドル
4288 在庫あり
主な仕様
ファン:Yes
名前:DRA-60-24
ストック:Yes
形式:Din Rail
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| ファン | Yes |
| 名前 | DRA-60-24 |
| ストック | Yes |
| 形式 | Din Rail |
| シリーズ | DRA-60 |
| 調光 | 1-10V, Resistance 0-100K, PWM Signal 10V |
| 承認 | CE, UL |
| 電力（W） | 60,00 |
| サブフォーマット | Narrow |
| 幅（mm） | 40.00 |
| 高さ（mm） | 90.00 |
| AC入力最大 | 264,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting, Industrial, Telecommunications |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 3.000,00 |
| 出力電圧 | 24,00 |
| ピーク電力（W） | Sixty |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 100.00 |
| 長い説明 | Power supply with Output Current Adjustable.Format to install on a Din Rail.Range of universal Input90-264vac47-63Hz.Output voltage24vdc.(Adjustable with potentiometer 24-30vdc).Range of Output Voltage with Current mode Constant3 to 24vdcaccording to demand load.Output intensity:2.5 To.Range of output current 0-2,5 a according To demand load.Regulationfrom 10% to 100% of the output intensity with a slider1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Power:60W.Efficiency:87%.Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):40 x 90 x 100mm.3 years of warranty.Manufacturer: MEANWELL.The series DRA are sources for Din-rail output current adjustable. Can work in a mode constant current for powering LEDs or loads that work in current mode constant. Have an input signal for regulating the output current that allows us to regulate the intensity of the LEDs or motors or the connected load.This source can operate in either Constant Current when we connect the LEDs directly, or other load having a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.Compatible with any dimmer 1-10V-market both assets and liabilities. Does not work with dimmers Triac dimmer cutting phase.Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open)SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424 |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Power supply with Output Current Adjustable.
