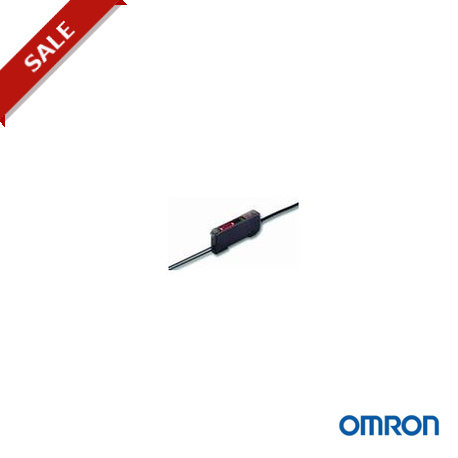

E3X-DAC8-S

E3X-DAC-SMark sensorsE3X-DAC-S high functionality mark detection sensorThe E3X-DAC-S provides reliable mark detection for standard as well as challengingapplications. The separatesensing head setup allows the easy adaptionto the mount- ing requirementseven when space is crucial. The remoteamplifier provides easyteaching for standard applications but also on demand full control over the detection performance for most challenging applications.Ordering informationPre-wiredItem Functions Order code (for pre-wired types with 2 m cable length) NPN outputPNP outputStandard modelsTimer, response speed changeE3X-DAC11-SE3X-DAC41-SAdvanced models Same as standard models + simultaneous determination (2 colors) AND/OR output, remote settingE3X-DAC21-SE3X-DAC51-SConnector versionsItem Functions Order codeNPN outputPNP outputStandard models (fiber amplifier connector)*1*1Order connector separatelyTimer, responsespeed changeE3X-DAC6-SE3X-DAC8-SSpecificationsItem Standard modelsAdvanced modelsE3X-DAC1, E3X-DAC4E3X-DAC6, E3X-DAC8Light source (wave length)White LED (420to 700 nm)E3X-DAC2, E3X-DAC5Number of registered marks1 2 (simultaneous determination)Power supply voltage12 to 24 VDC±10%, ripple (p-p) 10% max.Protective circuits Power supply reverse polarity protection, output short circuit protection, output reverse polarity protection, mutual interference preventionAmbient temperatureOperating –25 to 55°CStorage –30 to 70°C (with no icing or condensation)Response time Super-high-speed modeStandard modeOperation or reset: 60 μsOperation or reset: 1 msOperation or reset: 120 μsOperation or reset: 2 msSensitivity settingTeaching (one-point teaching or teaching with/without workpiece) or manual adjustmentFunctions Detection modeAutomode (automatic selection of C-mode or I-mode) C-mode (RGB ratio)I-mode (light intensity)Mark mode (Intensity and ratio of RGB values)Operating mode ON for match (ON for same color as registered color) or ON for mismatch (ON for different color from registered color)Timer functionTimer type: OFF delay,ON delay,or one-shortTimer time: 1 ms to 5 s (variable)Control outputs – Output for each channel, AND output, and OR outputRemote control – One-point teaching, teaching with/without workpiece, zero reset, and light emission OFFDegree of protectionIEC60529 IP50 (with protective cover attached)Recommended fiber headsSensor typeSize Recommended operating distance(mm)CommentOrder codeM65Standard mark detectionE32-CC200 2M29x25.5x11.2 mm 40 to 50Long distance – plastic E32-L15 2M23x20x9 mm25 to 30Long distance – metalE32-A09 2MM310High precision mark detection(dia 1mm spot)E32-EC31 2M + E39-EF51218E3X-DAC-SMark sensorsFiber amplifier connectorsShape Type Comment Order codeFiber amplifier connector2 m PVC cable E3X-CN2130 cm PVC cable with M12 plug connector (4 pin) E3X-CN21-M1J 0.3M30 cm PVC cable with M8 plug connector (4 pin)E3X-CN21-M3J-2 0.3M39,994Easy to operate detection of challenging or colored registration marks.Detection of challenging registration marks e.g. with texts or graphics.219
