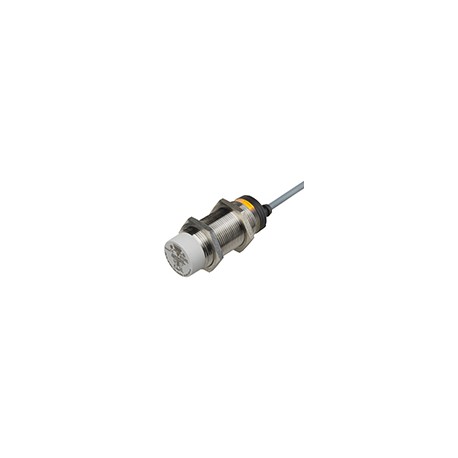

EC3025NPASL

Proximity Sensors CapacitiveStainless Steel HousingType EC, M30, DC• Featuring TRIPLESHIELD™ sensor protection• Rated operational voltage: 10-40 VDC• Adjustable sensing distance 2-16 mm or 4-25 mm• Output: DC 200 mA, NPN or PNP• Make and break switching function• LED indication• High noise immunity• Flush and non-flush types• Plug and cable versions available• AC versions in the same housingProduct DescriptionOrdering KeyEC 3025 PPA S L-1Capacitive proximity switches witheithersensingdistance16 mm flush mounted or sensing distance 25 mm non- flush mounted. 4-wire DC out- put with both make (NO) andbreak (NC) switching. M30 stainless steel housing with2 m PVC cable or plug. Ideal for use in level and plastic ma- chinery applications.Capacitive proximity switch Housing diameter (mm) Rated operating dist. (mm) Output typeHousing material Housing type Connection typeType SelectionHousingRated MountingOrdering no. Ordering no.Ordering no.Ordering no. diameteroperating Transistor NPN/cableTransistor NPN/plugTransistor PNP/cableTransistor PNP/plugdist. (Sn) 1) Make & breakMake & breakMake & break Make & break switching switching switching switchingM30 16 mmFlush (built-in)EC 3016 NPASLEC 3016 NPASL-1 EC 3016 PPASL EC 3016 PPASL-1M30 25 mmNon-flushEC 3025 NPASLEC 3025 NPASL-1 EC 3025 PPASL EC 3025 PPASL-11) Object: Grounded steel plateSpecificationsRated operating dist. (Sn)3016:2 to 16 mmfactory set at 16 mm3025:4 to 25 mmfactory set at 25 mmSensitivityAdj. multiturn pot.meter Effective operating dist. (Sr)0.9 x Sn £ Sr £ 1.1 x S Usable operating dist. (Su) 0.8 x Sr £ Sn > 1.2 x Sr Repeat accuracy (R) £ 5%Hysteresis (H)3 to 20% of sensing distanceRated operational volt. (UB)10 to 40 VDC (ripple included)Ripple £ 10%Rated operational current (Ie)Continuous £ 200 mANo-load supply current (Io) £ 10 mA (no load) Voltage drop (Ud)£ 2.5 VDC at max. load ProtectionReverse polarity,short-circuit, transientsFrequency of operatingcycles (f)50 HzIndication for output ONLED, yellowEnvironmentDegree of protection IP 67 (Nema 1, 3, 4, 6, 13)TemperatureOperating temperature -25° to +80°C (-13° to +176°F) Storage temperature-40° to +85°C (-40° to +185°F)Housing materialBody Stainless steel (St 304) Front Grey, polyesterCable end PolyesterNutsNickel plated brassConnectionCableGrey, 2 m, 4 x 0.34 mm2Oil proof, PVC Plug (-1)M12 x 1Cable for plug (-1)CON.1A-seriesWeight (incl. nuts)3016: 140 g3025: 150 gApprovalsULCE-marking YesSpecifications are subject to change without notice (20.08.01)1
