EKD20125PE

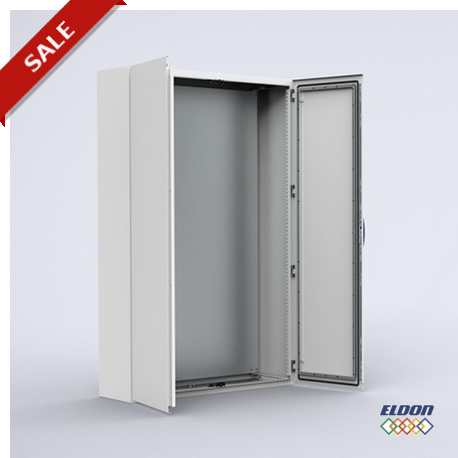

EKD20125PE ELDON Floor standing, 2000x1200x500
$0.00米ドル
4945 在庫あり
主な仕様
注記:Without mounting plate
体：:One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
深さ:500 mm
ドア：:Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
サプライヤー情報
ELDON
製品: 4827
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 注記 | Without mounting plate |
| 体： | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| 深さ | 500 mm |
| ドア： | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| ロック： | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
| 幅 | 1200 mm |
| 身長 | 2000 mm |
| 重さ | 127,5 Kg |
| 仕上げる： | RAL 7035 structured powder coating. |
| 配達： | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
| アーシング： | Can be accomplished by using ECF (Earthing connections for frame). |
| 材料： | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| 保護： | Complies with IP 55 TYPE 12, 13 IK 10. |
| 底板: | Consists of two sets of two pieces or three (D>300) pieces. |
| 特徴 | |
| 取り付けプレート: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
