EKDS18164-316

技術仕様

パラメータ	価値
機能名	Feature Value
深さ（EF000049）	400.00 mm
幅 (EF000008)	1.60 mm
カラー (EF000007)	Stainless steel
高さ（EF000040）	1.80 mm
利点: (機能)	Large enclosures can be installed in areas where there is limited access space. The enclosure's doors can support heavy loads, such as, cooling units, due to its increased loading capability. Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure. Stainless steel enclosures can be installed in almost any environment, grade dependent.
コメント: (特徴)	Stainless steel 304 double door compact floor standing enclosures, with a high IP 66, TYPE 4X, protection degree, are also available.
機能: (機能)	Stainless steel 304 and 316(L) double door compact floor standing enclosures, with a IP 55 protection degree.
材質（EF002169）	Stainless steel
連結可能（EF001229）
利点: (特徴)	The space required immediately in front of the enclosure is reduced due to the width of each enclosure door being half that of the enclosure. This also results in the door's loading capacity being higher, as it is split over two doors. The installed components inside the enclosure will be safe and secure due to the high protection degree.
RAL番号（EF000116）
本体: (技術データ)	One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.
ドア: (技術データ)	Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
EMCバージョン（EF001062）	false
ロック: (技術データ)	Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
コーナーモデル（EF020814）
自立型（EF020363）
傾斜屋根（EF009278）	false
仕上げ: (技術データ)	400 pre-grained stainless steel.
ポール固定具（EF009582）	false
リアドア付き（EF007381）	false
配送：（技術データ）	One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
アース: (技術データ)	Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
衝撃強度（EF004293）	IK10
材質: (技術データ)	AISI 304L pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm.
ドアの数（EF000122）	2.00
ロックの数（EF000123）	1.00
素材の品質（EF001257）	Stainless steel 316 (V4A)
ガラスドア付き（EF001089）	false
保護: (技術データ)	Double door version, complies with IP 55 TYPE 12, 13 IK 10. Individual doors with welded vertical divider, complies with IP 66 TYPE 4X, 12 and 13 IK 10.
背面パネル: (技術データ)	Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
表面仕上げ（EF006569）	Untreated
取り付けプレート付き（EF000118）	true
底板：（技術データ）	One piece bottom plate with injected polyurethane gasket to ensure maximum sealing.
中間マウント（EF022994）
取り付けプレート: (技術データ)	Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is supplied, attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included.
換気扉付き（EF006279）	false
保護等級（IP）（EF005474）	IP55
床置き壁掛けモデル（EF015208）
壁埋め込み型（EF007536）
壁掛け対応（EF000664）
保護等級（NEMA）（EF011959）	12
メートル法の取り付けに適しています（EF005823）
奥行き調節可能な取り付けプレート（EF006054）	true
IEC 62208（EF014988）に準拠したドアの最大許容荷重	None N
IEC 62208（EF014987）に準拠した筐体の最大許容荷重	None N
IEC/TR 60890（EF014986）に準拠した熱放散（デルタT = 20 K）	None W
IEC 62208（EF014989）に準拠した取り付けプレートの最大許容荷重	None N

製品説明

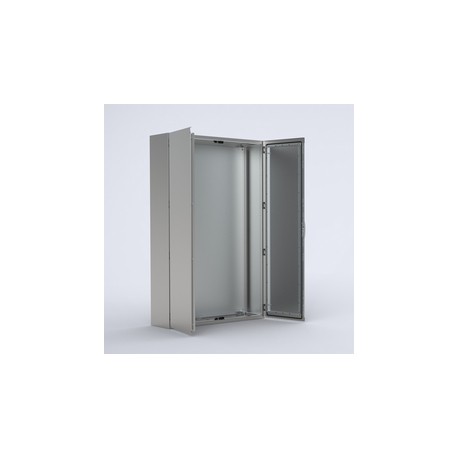

Self-supporting, 1800x1600x400, compact, 2-door, with MP, stainless steel 316, IP55
