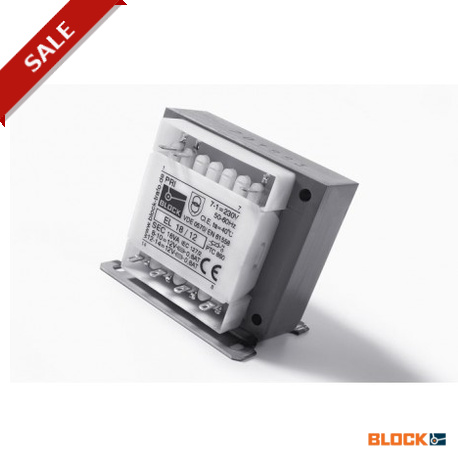

EL 50/9

General Data Rated input voltage 230 Vac Rated output voltage 2 x 6 ‑ 2 x 18 Vac Rated power 7.5 ‑ 100 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 88 % Degree of protection IP 00 Advantages Solder tab for free wiring Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation Coil shell in 2‑chamber technology Simple mounting thanks to robust metal footplate with oval slots Standards Safety isolating transformer to: VDE 0570 Part 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6 Safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
