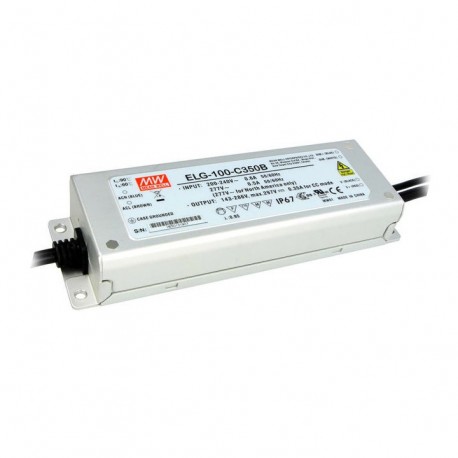

ELG-100-C500B

技術仕様

パラメータ	価値
名前	ELG-100-C500B
州	Do not Use for New Designs
形式	Box
シリーズ	ELG-100-C-B
調光	0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V
承認	CCC, CE, EAC, ENEC, KCC, MM, RCM, UL
電力（W）	100,00
サブフォーマット	IP67
幅（mm）	63.00
高さ（mm）	35.50
AC入力最大	305,00
AC入力最小	100,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	One hundred
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	199.00
長い説明	LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output in constant current500mA.Range of output voltage with current mode constantOne hundredto 200Vccaccording to demand load.Power:100W.Efficiency typical:91%.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):199 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.The series ELG are LED drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-100-C500B-3Y.With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	Five hundred
最小出力強度（mA）	500,00
出力最大強度（mA）	500,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver dimmable.
