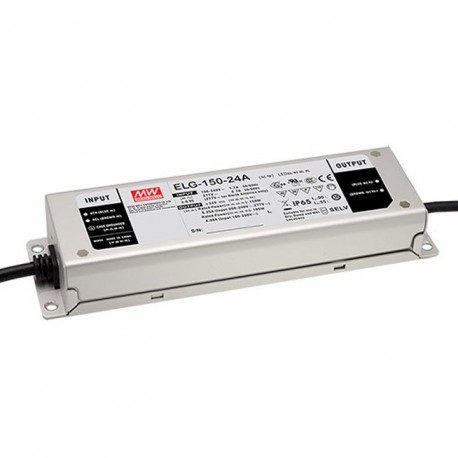

ELG-150-54A-3Y
ELG-150-54A-3Y MEANWELL AC-DC Single output LED Driver (CC+CV) with PFC, 3 wire input, Output 54VDC / 2.8A, ..
$0.00米ドル
4179 在庫あり
主な仕様
名前:ELG-150-54A-3Y
州:Recommended Model
ストック:Yes
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | ELG-150-54A-3Y |
| 州 | Recommended Model |
| ストック | Yes |
| 形式 | Box |
| シリーズ | ELG-150-V-A |
| 承認 | CCC, CE, EAC, ENEC, KCC, MM, RCM, UL |
| 電力（W） | 151,20 |
| サブフォーマット | IP65 |
| 幅（mm） | 63.00 |
| 高さ（mm） | 35.50 |
| AC入力最大 | 305,00 |
| AC入力最小 | 100,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | 151.2 |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 219.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range100-305Vca47-63Hz.Output in constant current2,8 A.Adjustable by external potentiometer (1,4-2,8 A).Range of output voltage with current mode constant27 to 54Vccaccording to demand load.The output voltage in voltage mode constant54Vcc.Adjustable by external potentiometer (49-58Vcc).Power:151,2 W.Efficiency typical:90%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Input class I with grounding. Input with 3 wires for ground.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):219 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source.The series ELG are LED drivers, class I grounded. This version 3 has a ground wire on the input (3 wire). You can order versions in that it uses the chassis of the source as a connection to the earth, removing from the end of the model -3Y. For example ELG-150-54A.You can also work in voltage mode constant giving a fixed voltage of 54V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing IP65. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 5,00 |
| 原産国 | China |
| 出力電流 mA | 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800 |
| 最小出力強度（mA） | 1.400,00 |
| 出力最大強度（mA） | 2.800,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
