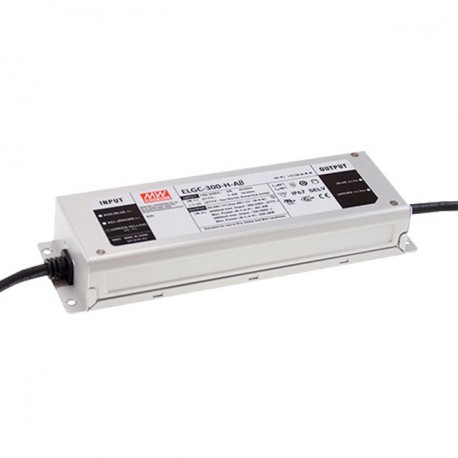

ELGC-300-H-AB

技術仕様

パラメータ	価値
名前	ELGC-300-H-AB
州	New
形式	Box
シリーズ	ELGC-300-AB
調光	0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V
承認	CCC, CE, EAC, ENEC, UL
電力（W）	301,60
サブフォーマット	IP67
幅（mm）	77.00
高さ（mm）	39.50
AC入力最大	305,00
AC入力最小	100,00
アプリケーション	Lighting, Industrial
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	301.6
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	246.00
長い説明	LED driver dimmable with constant power.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range100-305Vca47-63Hz.Output in constant current5,6 A.Adjustable by external potentiometer (2,6-8A).Maximum output power rating of betweenA 5.2-8A.Range of output voltage with current mode constant29 to 58Vccaccording to demand load and according to adjustment of the output current.Power:Eur 301.6 W.Efficiency typical:To 92.5%.Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the power output between 650 and 2000mA.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0,98to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):246 x 77 x 39.5 mm5 years of warranty.Manufacturer: MEAN WELL.The number ELGC-300 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.In this version AB, the output current can be adjusted byknob that incorporates the source itself,in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.The series ELGC are LED drivers, class I grounded.With metal housing, waterproof to IP67. The number ELGC-300 has a high efficiency designed for port applications, stage lighting, spaces for horticulture, LED lamps for fishing, lighting of stadiums, etc, in compliance with the requirements of security at the global level for lighting.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000, 4500, 5000, 5500, 6000, 7000, 8000
最小出力強度（mA）	2.600,00
出力最大強度（mA）	8.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver dimmable with constant power.

製品資料

データシート

技術仕様と性能データ

ユーザーマニュアル

設置・操作ガイド
