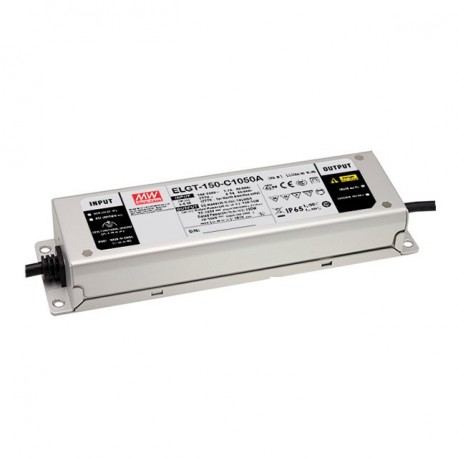

ELGT-150-C1050A
ELGT-150-C1050A MEANWELL AC-DC Class II Single output LED Driver (CC) with PFC, Output 142VDC / 1.05A, cable..
$0.00米ドル
3370 在庫あり
主な仕様
名前:ELGT-150-C1050A
州:New
形式:Box
シリーズ:ELGT-150-C-
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | ELGT-150-C1050A |
| 州 | New |
| 形式 | Box |
| シリーズ | ELGT-150-C- |
| 承認 | CCC, CE, ENEC |
| 電力（W） | 150,10 |
| サブフォーマット | IP65 |
| 幅（mm） | 63.00 |
| 高さ（mm） | 35.50 |
| AC入力最大 | 305,00 |
| AC入力最小 | 100,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | 150.1 |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 219.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP65.Input range100-305Vca47-63Hz.Output in constant current1050mA.Adjustable by external potentiometer (350-700mA).Range of output voltage with current mode constant72 to 143Vccaccording to demand load.Power:150,1 W.Efficiency typical:92%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Class II with functional earth for EMC.Factor corrector, power>0.95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):219 x 63 x 35.5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byOneexternal potentiometerlocated in the housing of the source.The series ELGT are LED drivers, class II with functional earth for EMC. The cabinet itself has a double insulation improve the protection against lightning and transients without the use of cable earth.With metal housing IP65. The series ELGT has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 5,00 |
| 原産国 | China |
| 出力電流 mA | One thousand fifty |
| 最小出力強度（mA） | 1.050,00 |
| 出力最大強度（mA） | 1.050,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
