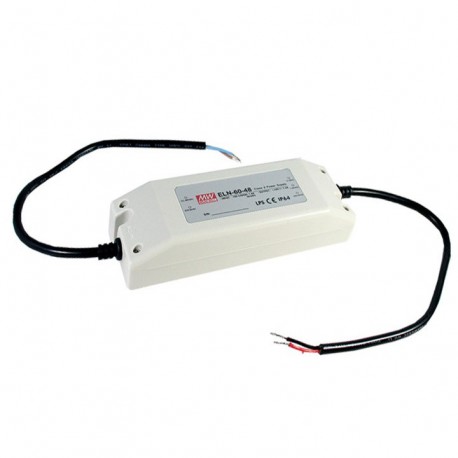

ELN-60-9P

技術仕様

パラメータ	価値
名前	ELN-60-9P
州	Do not Use for New Designs
形式	Box
シリーズ	ELN-60P
調光	Signal PWM 10V
承認	CE, UL
電力（W）	45,00
サブフォーマット	IP64
幅（mm）	61.5
高さ（mm）	Thirty five
AC入力最大	264,00
AC入力最小	90,00
アプリケーション	Industrial, Telecommunications
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.000,00
ピーク電力（W）	Forty five
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	One hundred eighty one
長い説明	LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP64.Input range90-264vac47-63Hz.Output in constant current5A.Range of output voltage with current mode constant3 to 9Vccaccording to demand load.Power:45W.Efficiency typical:82%.Regulationwith a PWM signal of 10V with a frequency of 100Hz to 3KHz.Input class II without grounding.Operating temperature range of caseTcfrom-20ºCup+60ºC.Dimensions (Length x Width x Height):One hundred eighty onex 61.5 x 35mm.2 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 9V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	2,00
原産国	China
出力電流 mA	Five thousand
最小出力強度（mA）	5.000,00
出力最大強度（mA）	5.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.

製品資料

データシート

技術仕様と性能データ

ユーザーマニュアル

設置・操作ガイド
