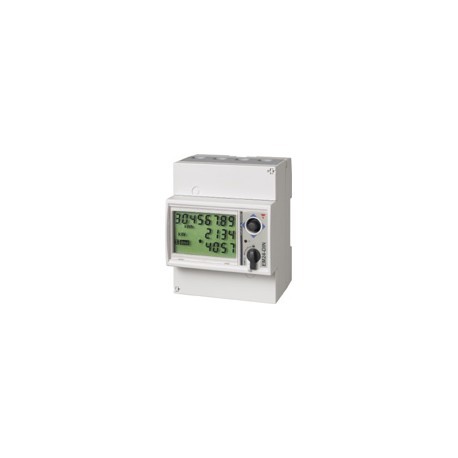

EM24DINAV23XDPPFA

Energy Management Energy Analyzer Type EM24 DIN• RS485 serial output (MODBUS-RTU), iFIX SCADA com- patibility• M-bus communication port (option M1)• Dupline communication capability (option DP)• Application adaptable display and programming proce- dure (Easyprog function)• Easy connections management• Certified according to MID Directive (option PF):see “how to order” below• Other versions available (not certified, option X):see “how to order” on the next page• Class 1 (kWh) according to EN62053-21• Class B (kWh) according to EN50470-3• Class 2 (kvarh) according to EN62053-23• Accuracy ±0.5 RDG (current/voltage)• Energy analyzer• Instantaneous variables readout: 4 DGT• Energies/gas/water readout: 8 DGT• System variables: VLL, VLN, Admd max, VA, VAdmd, VAd- md max, W, Wdmd, Wdmd max, var, PF, Hz, Phase- sequence.• Single phase variables: VLL, VLN, A, VA, W, var, PF• Energy measurements: total and partial kWh and kvarh or based on 4 different tariffs single phase measurements• Gas, cold water, hot water, kWh remote heating mea- surements• Hour counter (6+2 DGT)• TRMS measurements of distorted sine waves (volt- ages/currents)• Self power supply (AV2-AV9 inputs)• Auxiliary power supply (AV5-AV6 inputs)• 3 digital inputs for tariff selection, DMD synch or gas/water (hot-cold) and remote heating metering (on request)• 2 digital outputs for pulses or for alarms or as a mix of them• Dimensions: 4-DIN modules• Protection degree (front): IP50Product DescriptionThree-phase energy analyzer with built-in configuration joystickandLCD datadis- playing particularly indicat- ed for active and reactive energy metering and for cost allocation. Housing for DIN-rail mountingwithIP50 (front) protection degree. Direct connection up to 65A and by means of external current and potential trans- formers.Moreover the meter can beprovided with digital outputs that can be either for pulse proportional to the active (imported and exported) and reactive energy beingmea- sured or foralarm outputs. In alternative the RS485communication port and 3 digital inputs or Dupline port and 3 digitalinputsor the M-bus communication port are available as an option.Specifications are subject to change without notice EM24 DIN DS260315 1
