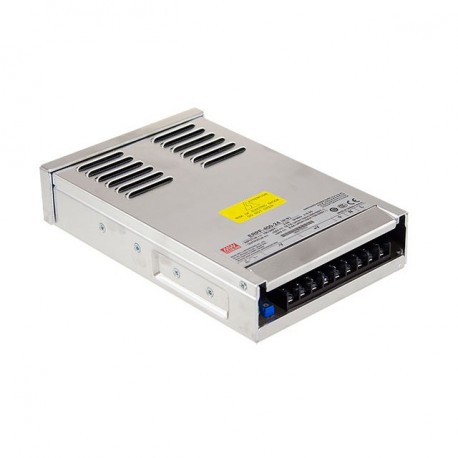

ERPF-400-48

技術仕様

パラメータ	価値
名前	ERPF-400-48
州	New
形式	Box
シリーズ	ERPF-400
承認	CCC, CE, EAC, UL
電力（W）	398,40
サブフォーマット	Grid
幅（mm）	130.00
高さ（mm）	48.00
AC入力最大	264,00
AC入力最小	90,00
アプリケーション	Lighting, Industrial
メーカー	MEAN WELL
製品タイプ	Power supply AC/DC
隔離（V）	3.000,00
出力電圧	48,00
ピーク電力（W）	398.4
入力コネクタ	Screw-Type
入力周波数	50 Hz, 60 Hz
長文/背景	220.40
長い説明	Switching power supply for LED panels.Splash proof water in vertical installation.Format in metal box semi-encapsulated.Input range90-264vac47-63Hz.Output voltage48vdc. Adjustable by potentiometer (43,2-52,8 Vdc).Output intensity8.3 To. Range of output current of 0-8,3 according To the demands of the load.Power:398,4 W.Efficiency typical:91%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Low leakage current<0.1 mA.LED power indicator.Protection against short circuit, over load, over voltage and temperature.Design splash proof from water and dust.Operating temperature range of caseTcfrom-30up+60ºC.Dimensions (Length x Width x Height):220,4 x 130 x 48mm.3 years of warranty.Manufacturer: MEAN WELL.The series ERPF are sources with a metal case of aluminum especially designed for panels of LED signage. With design semi-encapsulated splash proof from water and dust. Prepared for installation in vertical. It has a high efficiency and energy saving.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Have a power LED.Have multiple protections (short circuit, overload, over voltage and temperature).The series ERPF these sources are robust and reliable, with high efficiency and economic. Designed for all types of LED panels.
出力コネクタ	Screw-Type
入国の種類 CA	Single-phase
保証期間（年）	3,00
原産国	China

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Switching power supply for LED panels.
