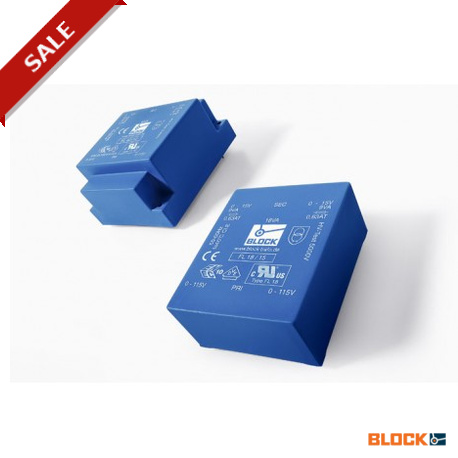

FL 14/6

General Data Rated input voltage 2 x 115 Vac Rated output voltage 2 x 5 ‑ 2 x 24 Vac Rated power 2 ‑ 52 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 81 % Degree of protection IP 00 Advantages Minimum size at high output Low height Dual input voltage for series or parallel connection Dual output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material Standards Mains transformerto: VDE 0570 Teil 2‑1, DIN EN 61558‑2‑1, EN 61558‑2‑1, IEC 61558‑2‑1, UL 5085‑1/‑2, CSA 22.2 No.66 Isolating transformerto: VDE 0570 Part 2‑4, DIN EN 61558‑2‑4, EN 61558‑2‑4, IEC 61558‑2‑4, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformer to: VDE 0570 Part 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Approvals ENEC 10 (VDE), UL 5085‑1/‑2, CSA 22.2 No.66 As a mains transformer for adjustment of the voltage and simple electrical isolation. As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
