G61101145-1

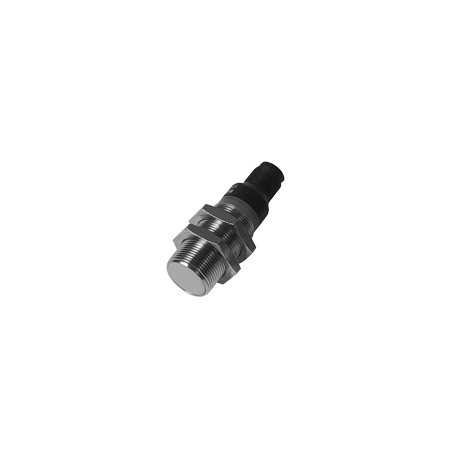

Transmitter with Inductive Proximity Switch Function Type G 6110 1145Duline®FieldbusInstallationbus• Stainless steel housing, cylindrical• Diameter: M18• Short version• Flush mounting• Sensing distance: 5 mm• Powered by Dupline®• Available with M12 connector or with 2 m cable• Freely programmable channel code by GAP 1605Product DescriptionOrdering KeyG 6110 1145Self-powered Dupline®induc- tive proximity switch. The channel code is freely pro- grammable by GAP 1605 pro-grammer.The unitactivates the coded channel whenever the proximity of a metallic object is detected.Type: Dupline®Type SelectionHousing diameter Connection Rated operating dist. (Sn)Ordering NumberM18Cable 5 mm 1) G 6110 1145M18M12 plug5 mm 1) G 6110 1145-11) For flush mounting in metalInputSpecificationsInput Inductive proximity switchNominal sensing distance Sn5 mmEffective sensing range Sr0.9 x Sn ≤Sr ≤ 1.1 x Sn Usable operating range Su 0.9 x Sr ≤Su ≤ 1.1 x Sr Assured operating range Sa 0 < Sa < 0.81 x SnHysteresis H Typ. 7%Response time≤ 1 Dupline®pulse trainSupply SpecificationsPower supplySupplied by Dupline®Reverse polarity protection YesRated operational current Typ. 900 µAGeneral SpecificationsPower On delay Typ. 5 mSEnvironmentDegree of protection IP 67Pollution degree3 (IEC 60664)Operating temperature-25 to +70°C (-13 to +158°F) Storage temperature -30 to +80°C (-22 to +176°F)Mechanical resistanceTightening torque2.6 NmMaterialHousing & BodyStainless steel (1.4301) BackBlack polyesterFront Grey thermoplastic polyesterCable typePVC, grey, oil proof,3 x 0.3 mm2Cable length 2 mWeight (cable included)25 gReduction FactorsThe nominal sensing distance is reduced by the use of metal and alloys other than ST 37. Most important reduction factors for the inductive proximity switch are:Stainless steel 0.6 x Sn Brass0.4 x Sn Aluminium0.3 x Sn Copper 0.2 x SnSpecifications are subject to change without notice (30.01.2007)1Dupline®is a registered trademark. A product of the CARLO GAVAZZI Group
