GP62203302724

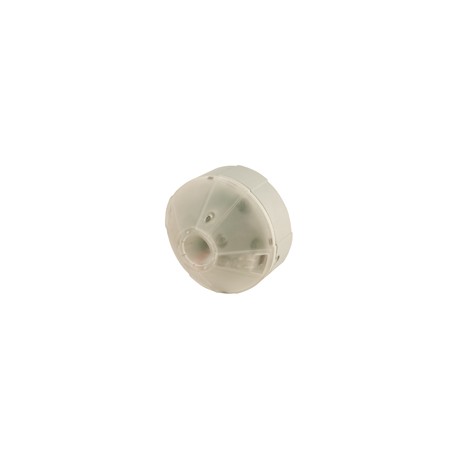

Dupline® Car Park SystemType GP6220 330x3-Colour Ultrasonic Sensor• Ultrasonic sensor with a 3-colour LED indicator• LED colour control via the bus• Low current consumption• Self-calibration of the sensor can be performed globally on all sensors at once or locally on a single sensor• Automatic temperature compensation• Wide measuring range• Protected against dust and moisture• Dupline® 3-wire bus system with power• Address coding with Carpark Configurator GP73800080• GP6220 3301 has a built in red/green/amber LED indicator• GP6220 3302 has a built in red/green/blue LED indicator• GP6220 3303 has a built in red/blue/amber LED indicator• cULus approvedProduct DescriptionOrdering keyGP 6220 330x 724GP6220330x is an ultrasonic sensor with a built-in3 col- our LED indicator and part of the Dupline®parking guid- ance system.TheGP6220330xsensor is installed in the middle of the ceiling above the parking bayanddetectswhethera car is parked in the bay. The parking bay status is indicat- ed using the built in LEDs. Thecolourofthebuilt-in LEDindicatoriscontrolled viathebusbyanexternal device (e.g. a PC or a PLC). Different colour combina- tionsareavailabletofacil- itatedifferentapplications. E.g.thecombination red/ green/ambercanbeusedin a parking facility withan automated bookingsystem, and amber can indicate spaces booked for a specific event or for VIPs.Each sensor needs to be connectedtotheDupline®3-wire bus. The bus pro- videspower andenables the sensors totransmitthe statusoftheparkingbays to the carpark monitoring devices (GP3482 9091 724- X), which keep track of the number of free parking bays in an area and show the result on the connected dis- plays.Type: Dupline®Housing Input type Addresses Inputs SupplyType SelectionGP6220 3301 724 Sensor with red/green/amber LED GP6220 3302 724 Sensor with red/green/blue LED GP6220 3303 724 Sensor with red/blue/amber LEDInput/Output Specifications Supply SpecificationsRJ12 connectorforaddressprogramming with Carpark Configurator GP7380 00802x3-pin connector • Printeddotonthe sensor is Dupline® +• D- or Gnd• POW (power from DMM or Coupler). See draw- ing on page 3 (System diagram)1x2-pin connector Not in use.NOTE: The sensorconnectorsare usingthe“push-wire connection”methode. Use a 1.5 mm2single core wire for the sensor installation.Power supply: 21 VDC min. 30 VDC max. (Overvoltage categoryIII (IEC60664))Max. supply current20 mANominal Supply 28 VDC / 19 mA0,53 WSpecifications are subject to change without notice (05.08.2014) 1
