GST220A20-R7B

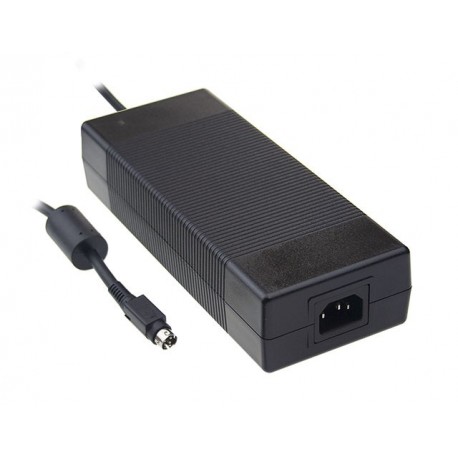

GST220A20-R7B MEANWELL AC-DC Industrial desktop adaptor with PFC, Output 20VDC / 11, 3 pole AC inlet IEC320-..
$0.00米ドル
4007 在庫あり
主な仕様
名前:GST220A20-R7B
州:Recommended Model
形式:Desktop
シリーズ:GST220
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | GST220A20-R7B |
| 州 | Recommended Model |
| 形式 | Desktop |
| シリーズ | GST220 |
| 承認 | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
| 電力（W） | 220,00 |
| 幅（mm） | 85.00 |
| 高さ（mm） | 46.00 |
| AC入力最大 | 264,00 |
| AC入力最小 | 85,00 |
| アプリケーション | Industrial, Telecommunications |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 3.000,00 |
| 出力電圧 | 20,00 |
| ピーク電力（W） | Two hundred twenty |
| 入力コネクタ | IEC 320-C14 |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 210.00 |
| 長い説明 | Source Switched type desktop adapter.Range of Universal Input85-264vac47-63Hz.Output voltage20vdc.Output intensity11A. Range of output current 0-11A according to demand load.Power:220W.Power input connectorIEC320-C14.Output connector typeDIN 4-pin(other connectors available with minimum quantities).Active PFC >of 0.91 to 230vac >0.95 at 115vac.Temperature range: From-30up+70 ° C(refer to the load levels according to the ambient temperature in the technical data sheet).Protections: short circuits, overloads, and overvoltage output and temperature.LED Indicator of correct operation.Class I Insulation with earth.Dimensions (Length x Width x Height) [mm]:210 x 85 x 46.3 years of warranty.Manufacturer: MEAN WELL.The series GST220 these sources are switched in the format of a desktop of high reliability, high efficiency and low consumption without load (<0.15 W).These feeders desktop complies with the latest requirements of energy efficiency and ecological design as are EISA 2007/us DoE to the united States, NR CAN Canada, the MEPS for Australia and New Zealand and the code of conduct (CoC) Version 5 for Europe.Are certified CE (Europe), UL (for united States and Canada), BSMI (for Taiwan), CCC (China), PSE (for Japan), RCM (Australia and New Zealand), KCC (Korea), BIS (India), EAC (Russia, Belarus, Armenia andKazakhstan), SIRIM (Malaysia) and holds certification CB, and TUV. This, coupled with their high efficiency and minimum consumption, no-load make them perfect for all types of applications.Network Cable not included. |
| 出力コネクタ | R7B DIN 4p |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Source Switched type desktop adapter.
