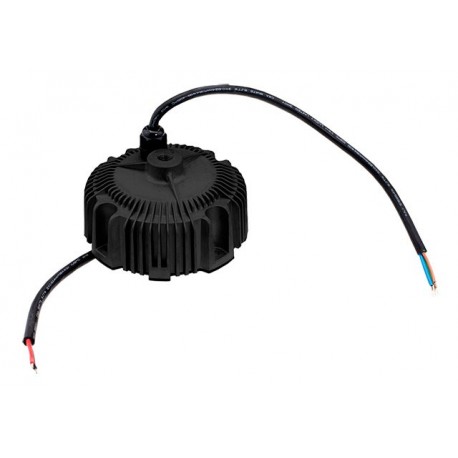

HBG-100-24A

技術仕様

パラメータ	価値
名前	HBG-100-24A
州	Recommended Model
ストック	Yes
形式	Box
シリーズ	HBG-100-
承認	CCC, CE, ENEC, UL
電力（W）	96,00
サブフォーマット	IP65
幅（mm）	130.00
高さ（mm）	66.50
AC入力最大	305,00
AC入力最小	90,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	96.00
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	130.00
長い説明	LED driver.Specially designed for powering LEDs directly in a steady stream.Format circular plastic patentedIP65.Input range90-305Vca47-63Hz.Output in constant current4A.Adjustable by external potentiometer (2,4-4A).Range of output voltage with current mode constant14.4 to 24vdcaccording to demand load.Power:96W.Efficiency typical:Total of 90.5%.Potentiometer:This model incorporates external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0.96to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Diameter x Height):130 x 66,5 mm5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.With cover, round, plastic IP65. The series HBG is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. Input class I with grounding.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000
最小出力強度（mA）	2.400,00
出力最大強度（mA）	4.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.
