HDR-150-24

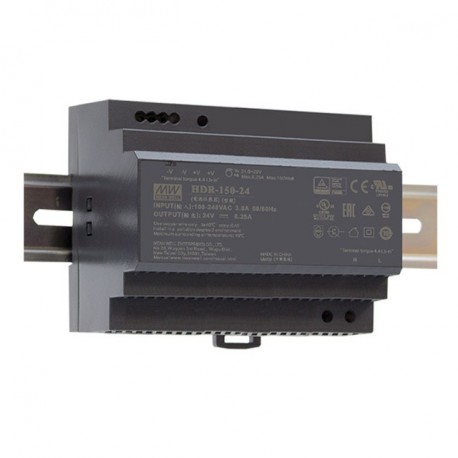

HDR-150-24 MEANWELL AC-DC Ultra slim DIN rail power supply, Input range 85-264VAC, Output 24VDC / 6.25A
$0.00米ドル
3006 在庫あり
主な仕様
名前:HDR-150-24
州:New
ストック:Yes
形式:Din Rail
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | HDR-150-24 |
| 州 | New |
| ストック | Yes |
| 形式 | Din Rail |
| シリーズ | HDR-150 |
| 承認 | CE, EAC, TÜV, UL |
| 電力（W） | 127,40 |
| サブフォーマット | Ladder |
| 幅（mm） | 105.00 |
| 高さ（mm） | 90.00 |
| AC入力最大 | 264,00 |
| AC入力最小 | 85,00 |
| アプリケーション | Automation of Buildings, home Appliances, Industrial, Telecommunication |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 4.000,00 |
| 出力電圧 | 24,00 |
| ピーク電力（W） | One hundred fifty |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 54.50 |
| 長い説明 | Switch mode power supply.Format to mount on a Din rail.Range of universal input85-264vac47-63Hz.Output voltage24vdc.Adjustable by potentiometer (21,6-29Vcc.).Output intensity6,25 A.Power:150W.Efficiency typical:Total of 90.5%.LED Indicator of correct operation.Class ll without the taking of land.Consumption without load<0,3 W.Protection against short circuit, over load and over voltage.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):105 x 90 x 54,5 mm3 years of warranty.Manufacturer: MEAN WELL.The series HDR-150 is the latest generation of power supplies for din rail format ladder MEAN WELL. These sources are class II non-grounded, designed for installing in an electrical box housing for applications of building automation, industrial applications, security, telecommunications, and also for residential applications to be certified to EN61558-2-16. These sources teinen category III (OVC III) for protection against overvoltages, which allows you to use them in the control boxes without the need of additional protections.Have a low consumption at no load and high efficiency which make it suitable for all types of applications and allow a greater saving of energy. They are designed to go perfectly in a box electric housing with its format type and ladder width 6SU (105mm).Have protection against short circuits, overloads and over voltages in the output. |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Switch mode power supply.
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
