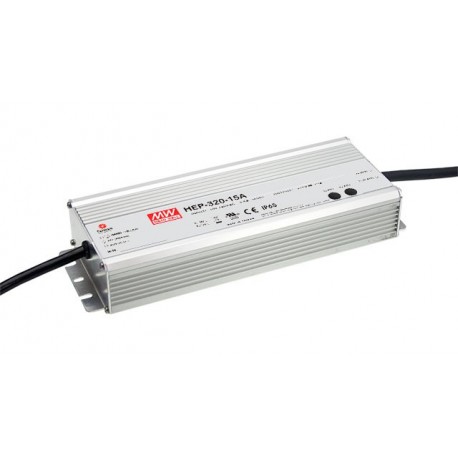

HEP-320-15A

技術仕様

パラメータ	価値
名前	HEP-320-15A
形式	Box
シリーズ	HEP-320
承認	CE, UL
電力（W）	285,00
サブフォーマット	IP65
幅（mm）	Ninety
高さ（mm）	43.8
AC入力最大	305,00
AC入力最小	90,00
アプリケーション	Industrial, Telecommunications
メーカー	MEAN WELL
製品タイプ	Power supply AC/DC
隔離（V）	3.750,00
出力電圧	15,00
ピーク電力（W）	Two hundred eighty five
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	Two hundred fifty two
長い説明	Switch-mode power supply for extreme environments.Format in metal boxIP65.Input range90-305Vca47-63Hz.Output voltage15vdc. Adjustable by potentiometer (13,5-17Vcc).Output intensity19A. Range of output current 0-19A according to demand load.Intensity of maximum output adjustable by knob (up to 9.5-19A).Power:285W.Factor Corrector of a Power >0,95.Efficiency typical:To 92.5%.Working temperature from-55up+70 ° C(refer to the technical sheet to see the curves of drift).Protection against transients6KV.Resistant to vibrations10G.Operating altitude up to5000 metres.Dimensions (Length x Width x Height):252 x 90 x 43.8 mm6 years of warranty.Manufacturer: MEAN WELL.The series HEP are sources of industrial power ready to work in extreme environments of dust, moisture, vibration, temperature and altitude. The whole series has a box of sturdy aluminum filled with a special silicone heat-conductive and electrically insulating, and moisture, this allows a better heat dissipation and greater resistance to water. With an innovative design feature with a high efficiency to reduce the power consumption and heat generation. They are ideal for applications where we don't want to use fans and we need a source robust.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	6,00
原産国	Taiwan

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Switch-mode power supply for extreme environments.
