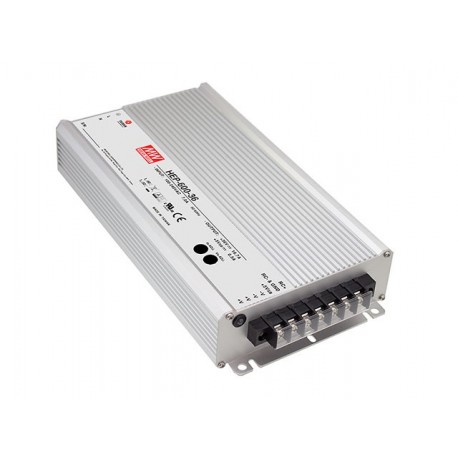

HEP-600-54

技術仕様

パラメータ	価値
名前	HEP-600-54
形式	Box
シリーズ	HEP-600
承認	CE, UL
電力（W）	604,80
サブフォーマット	IP20
幅（mm）	144.00
高さ（mm）	48.50
AC入力最大	305,00
AC入力最小	90,00
アプリケーション	Industrial, Telecommunications
メーカー	MEAN WELL
製品タイプ	Power supply AC/DC
隔離（V）	3.750,00
出力電圧	54,00
ピーク電力（W）	604.8
入力コネクタ	Screw-Type
入力周波数	50 Hz, 60 Hz
長文/背景	280.00
長い説明	Source of power for extreme environments.Format in metal boxIP20.Input range90-305Vca47-63Hz.Output voltage54Vcc. Adjustable by potentiometer (45,9-56,7 Vcc).Output intensity11,2 To. Current range of output 0-11,2 according To the demand load.Intensity of maximum output adjustable by potentiometer (5,6-11,2 A).Power:604,8 W.Efficiency typical:96%.Potentiometers:this model incorporates 2 potentiometers inside that allows us to regulate the output voltage and the maximum output current.Input class I with grounding.Factor Corrector of a Power >0,95to 230vac at full load.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-40up+70ºC.Protection against transients6KV.Resistant to vibrations10G.Operating altitude up to5000 metres.Dimensions (Length x Width x Height):280 x 144 x 48,5 mm6 years of warranty.Manufacturer: MEAN WELL.The series HEP are sources of industrial power ready to work in extreme environments of dust, moisture, vibration, temperature and altitude. The whole series has a box of sturdy aluminum filled with a special silicone heat-conductive and electrically insulating, and moisture, this allows a better heat dissipation and greater resistance to water. With an innovative design feature with a high efficiency to reduce the power consumption and heat generation. They are ideal for applications where we don't want to use fans and we need a source robust.
出力コネクタ	Screw-Type
入国の種類 CA	Single-phase
保証期間（年）	6,00
原産国	Taiwan

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

Source of power for extreme environments.
