HLG-185H-24A

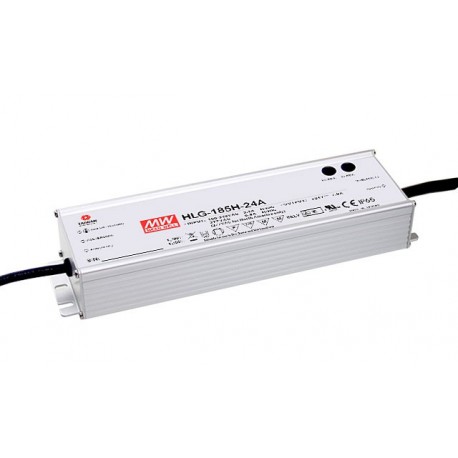

HLG-185H-24A MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC, Output 24VDC / 7.8A..
$0.00米ドル
4798 在庫あり
主な仕様
名前:HLG-185H-24A
州:Recommended Model
ストック:Yes
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | HLG-185H-24A |
| 州 | Recommended Model |
| ストック | Yes |
| 形式 | Box |
| シリーズ | HLG-185H- |
| 承認 | CCC, CE, EAC, KCC, MM, PSE, RCM, TUV, UL |
| 電力（W） | 187,20 |
| サブフォーマット | IP65 |
| 幅（mm） | 68.00 |
| 高さ（mm） | 38.80 |
| AC入力最大 | 305,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | 187.2 |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 228.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range90-305Vca47-63Hz.Output in constant currentTo 7.8 A.Adjustable by external potentiometer (3,9-7,8).Range of output voltage with current mode constant12 to 24vdcaccording to demand load.The output voltage in voltage mode constant24vdc. Adjustable by external potentiometer (22-27Vcc).Power:187,2 W.Efficiency typical:93,5%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):228 x 68 x 38,8 mm7 years of warranty.Manufacturer: MEAN WELLThis source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source.The series HLG are LED drivers, class I grounded.You can also work in voltage mode constant giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing IP65. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting.If you want to regulate the LED strips we recommend the series PWM. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 7,00 |
| 原産国 | China |
| 出力電流 mA | 3500, 4000, 4500, 5000, 5500, 6000, 7000, 8000 |
| 最小出力強度（mA） | 3.900,00 |
| 出力最大強度（mA） | 7.800,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
