HLG-480H-48

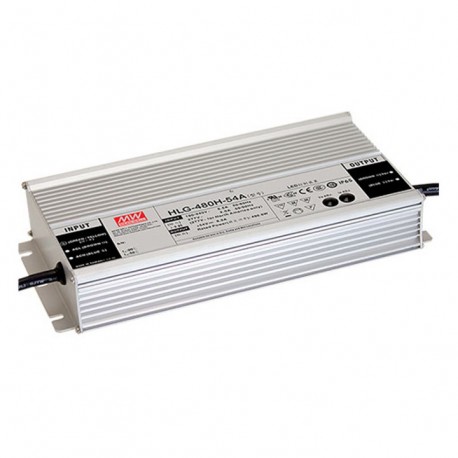

HLG-480H-48 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC, Output 48VDC / 10A, ..
$0.00米ドル
4347 在庫あり
主な仕様
名前:HLG-480H-48
州:New
形式:Box
シリーズ:HLG-480H-V
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | HLG-480H-48 |
| 州 | New |
| 形式 | Box |
| シリーズ | HLG-480H-V |
| 承認 | CCC, CE, EAC, ENEC, KCC, RCM, UL |
| 電力（W） | 480,00 |
| サブフォーマット | IP67 |
| 幅（mm） | 125.00 |
| 高さ（mm） | 43.80 |
| AC入力最大 | 305,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | Four hundred eighty |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 262.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range90-305Vca47-63Hz.Output in constant current10A.Range of output voltage with current mode constant24 to 48vdcaccording to demand load.Power:480W.Efficiency typical:94.5 per cent.Input class I with grounding.Factor corrector, power>0.97to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):262 x 125 x 43.8 mm7 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.The series HLG are LED drivers, class I grounded.You can also work in voltage mode constant giving a fixed voltage of 48V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing, waterproof to IP67. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 7,00 |
| 原産国 | Taiwan |
| 出力電流 mA | Ten thousand |
| 最小出力強度（mA） | 10.000,00 |
| 出力最大強度（mA） | 10.000,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
