HLG-600H-54

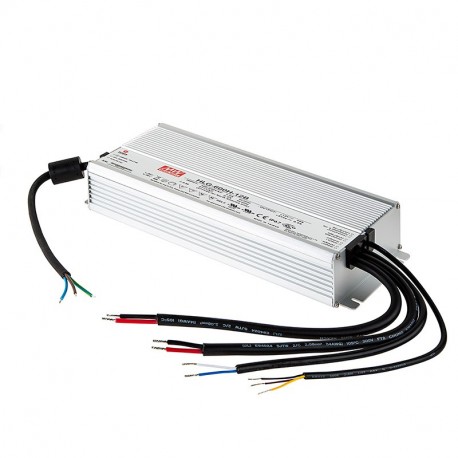

HLG-600H-54 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC, Output 54VDC / 11.2A..
$0.00米ドル
4583 在庫あり
主な仕様
名前:HLG-600H-54
州:Recommended Model
形式:Box
シリーズ:HLG-600H
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | HLG-600H-54 |
| 州 | Recommended Model |
| 形式 | Box |
| シリーズ | HLG-600H |
| 承認 | CCC, CE, ENEC, PSE, UL |
| 電力（W） | 604,80 |
| サブフォーマット | IP67 |
| 幅（mm） | 144.00 |
| 高さ（mm） | 48.50 |
| AC入力最大 | 305,00 |
| AC入力最小 | 90,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | 604.80 |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 280.00 |
| 長い説明 | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in metal box sealedIP67.Input range90-305Vca47-63Hz.Output in constant currentTo 11.2 A.Range of output voltage with current mode constant27 to 54Vccaccording to demand load.Power:604,8 W.Efficiency typical:96%.Input class I with grounding.Factor corrector, power>0.95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):280 x 144 x 48,5 mm7 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.The series HLG are LED drivers, class I grounded.You can also work in voltage mode constant giving a fixed voltage of 54V if the load is powered at constant voltage and does not overcome the maximum output power.With metal housing, waterproof to IP67. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 7,00 |
| 原産国 | Taiwan |
| 出力電流 mA | 11000, 12000 |
| 最小出力強度（mA） | 11.200,00 |
| 出力最大強度（mA） | 11.200,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver.
