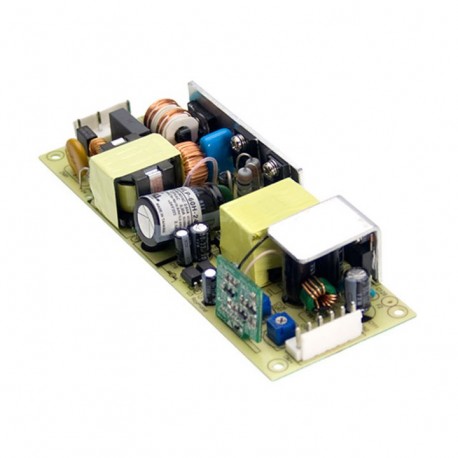

HLP-40H-36

技術仕様

パラメータ	価値
名前	HLP-40H-36
州	Recommended Model
形式	Open Format
シリーズ	HLP-40H
調光	1-10V, Resistance 0-100K, PWM Signal 10V
承認	CCC, CE, UL
電力（W）	40,30
幅（mm）	53.00
高さ（mm）	27.00
AC入力最大	305,00
AC入力最小	90,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	40.3
入力コネクタ	Plug-in
入力周波数	50 Hz, 60 Hz
長文/背景	147.00
長い説明	LED driver.Specially designed to feed LED strips.Open format typePCBS.Input range90-305Vca47-63Hz.Output in constant current1120mA.Adjustable by external potentiometer (670-1120mA).Range of output voltage with current mode constant21.6 to 36Vccaccording to demand load.The output voltage in voltage mode constant36Vcc. Adjustable by external potentiometer (33-40Vcc).Power:40,3 W.Efficiency typical:89%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):147 x 53 x 27mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output voltage and the output current can be adjusted byexternal potentiometerslocated in the plate of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.With format, open PCB type. The series HLP is intended for applications of LED lighting. Suitable for dry environments and interior. Burn test at 100% load.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
出力コネクタ	Plug-in
入国の種類 CA	Single-phase
保証期間（年）	3,00
原産国	China
出力電流 mA	650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150
最小出力強度（mA）	670,00
出力最大強度（mA）	1.120,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.
