HVGC-320-2800A

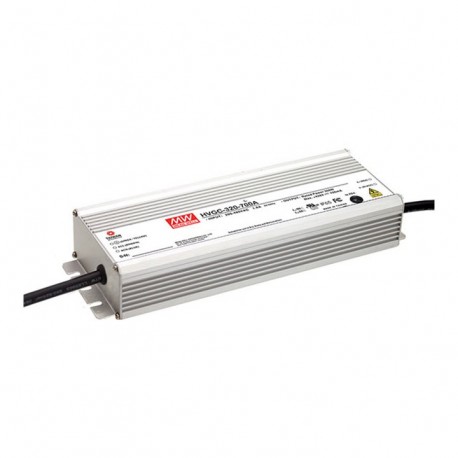

HVGC-320-2800A MEANWELL AC-DC Single Output LED driver Constant Current (CC) with built-in PFC, Output 118VD..
$0.00米ドル
4888 在庫あり
主な仕様
名前:HVGC-320-2800A
州:Recommended Model
形式:Box
シリーズ:HVGC-320-A
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | HVGC-320-2800A |
| 州 | Recommended Model |
| 形式 | Box |
| シリーズ | HVGC-320-A |
| 承認 | EC, EAC, ENEC, MM, UL |
| 電力（W） | 320,00 |
| サブフォーマット | IP65 |
| 幅（mm） | 90.00 |
| 高さ（mm） | 43.80 |
| AC入力最大 | 528,00 |
| AC入力最小 | 180,00 |
| アプリケーション | Lighting |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| 隔離（V） | 3.750,00 |
| ピーク電力（W） | Three hundred twenty |
| 入力コネクタ | Cable |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 262.00 |
| 長い説明 | LED driver with phase input.Specially designed for powering LEDs directly in a steady stream.Format in metal boxIP65.Input range180-528Vca47-63Hz.Output in constant current2,8 A.Adjustable by external potentiometer (1,4-2,8 A).Range of output voltage with current mode constant57 to 114,3 Vccaccording to demand load.Power:320W.Efficiency typical:93,5%.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0,98to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):262 x 90 x 43.8 mm5 years of warranty.Manufacturer: MEAN WELLThis source can work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.The series HVG are LED drivers, class I grounded.With metal housing IP65. The series HVG has a high efficiency designed for applications of public lighting, exterior, interior, or any application of LED lighting. Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting.If you want to regulate the LED strips we recommend the series PWM. |
| 出力コネクタ | Cable |
| 入国の種類 CA | Three-phase |
| 保証期間（年） | 5,00 |
| 原産国 | China |
| 出力電流 mA | 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800 |
| 最小出力強度（mA） | 1.400,00 |
| 出力最大強度（mA） | 2.800,00 |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver with phase input.
