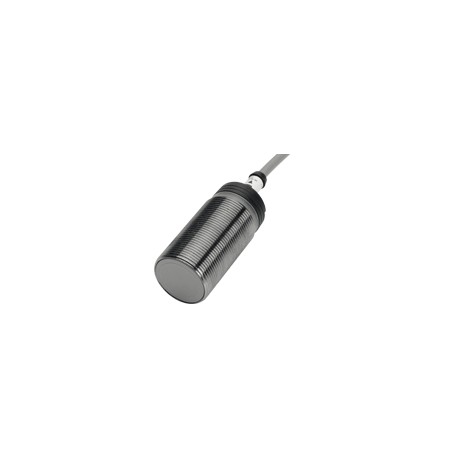

ICB30LF15NO

PICBr,oMx30imity Inductive SensorsExtended Range, Nickel-Plated Brass HousingTypes ICB, M30• Sensing distance: 15 to 22 mm• Flush or non-flush types• Short or long body versions• Rated operational voltage (Ub): 10 - 36 VDC• Output: DC 200 mA, NPN or PNP• Normally open or Normally closed• LED indication for output ON• Protection: reverse polarity, short circuit, transients• Cable or M12 plug versions• According to IEC 60947-5-2• CSA certified for Hazardous LocationsProduct DescriptionOrdering KeyICB30SF15NOM1A familyofinductiveprox- imity switches inindustri- al standard nickel-plated brass housings. They are able tohandle applications where high sensing range is requested.Output is open collectorNPN or PNP transistors.TypeHousing style Housing material Housing size Housing length Detection principle Sensing distance Output typeOutput configurationConnectionType SelectionConnec- Body RatedOrdering no.Ordering no. Ordering no.Ordering no. tionstyleoperatingNPN,PNP, NPN,PNP,distance Sn Normally openNormally openNormally closed Normally closedCableShort 15 mm 1) ICB30SF15NOICB30SF15PO ICB30SF15NCICB30SF15PC CableShort 22 mm 2) ICB30SN22NOICB30SN22PO ICB30SN22NCICB30SN22PC PlugShort 15 mm 1) ICB30SF15NOM1ICB30SF15POM1ICB30SF15NCM1ICB30SF15PCM1PlugShort 22 mm 2) ICB30SN22NOM1ICB30SN22POM1ICB30SN22NCM1ICB30SN22PCM1CableLong15 mm 1) ICB30LF15NOICB30LF15POICB30LF15NCICB30LF15PC CableLong22 mm 2) ICB30LN22NOICB30LN22POICB30LN22NCICB30LN22PC PlugLong15 mm 1) ICB30LF15NOM1 ICB30LF15POM1ICB30LF15NCM1 ICB30LF15PCM1PlugLong22 mm 2) ICB30LN22NOM1ICB30LN22POM1ICB30LN22NCM1ICB30LN22PCM11) For flush mounting in metal2) For non-flush mounting in metalSpecificationsRated operational voltage (Ub)10 to 36 VDC (ripple incl.)Ripple ≤ 10%Output current (Ie) ≤ 200 mA @ 50°C(≤ 150 mA @ 50-70°C)OFF-state current (Ir)≤ 50 μANo load supply current (Io) ≤ 15 mAVoltage drop (Ud)Max. 2.5 VDC @ 200 mAProtectionReverse polarity,short-circuit, transientsVoltage transient 1 kV/0.5 J Power ON delay (tv)300 ms Operating frequency (f)≤ 1000 HzIndication for output ONActivated LED, yellowNO versionTarget presentNC versionTarget not presentIndication for short circuit/overload LED blinking (f = 2 Hz)Assured operatingsensing distance (Sa)0 ≤ Sa ≤ 0.81 x SnEffective operatingdistance (Sr)0.9 x Sn ≤ Sr ≤ 1.1 x SnUsable operating distance (Su) 0.85 x Sr ≤ Su ≤ 1.1 x SrRepeat accuracy (R) ≤ 5%Differential travel (H)(Hysteresis) 1 to 20% of sensing dist.Ambient temperatureOperating-25° to +70°C (-13° to +158°F) Storage -30° to +80°C (-22° to +176°F)Shock and vibration IEC 60947-5-2/7.4Housing materialBody Nickel-plated brassFront capGrey thermoplastic polyesterSpecifications are subject to change without notice (26.11.2014)1
