KIT TORNILLOS

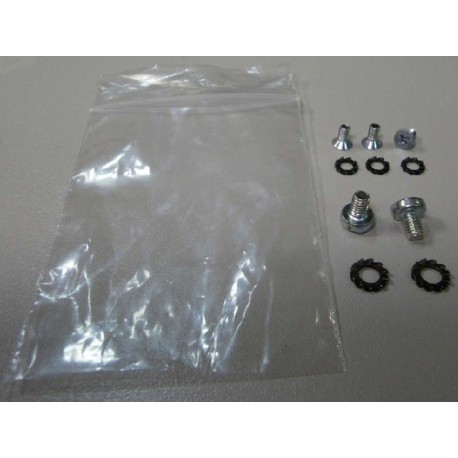

KIT TORNILLOS MEANWELL Screws kit to mount on DIN-rail the brackets DRL-01, DRL-02, DRL-03 or DRL-03A along ..
$0.00米ドル
3005 在庫あり
主な仕様
名前:KIT SCREWS
ストック:Yes
形式:Din Rail
シリーズ:Screw KIT
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | KIT SCREWS |
| ストック | Yes |
| 形式 | Din Rail |
| シリーズ | Screw KIT |
| 幅（mm） | 0.00 |
| 高さ（mm） | 0.00 |
| メーカー | MEAN WELL |
| 製品タイプ | Fitting |
| 長文/背景 | 0.00 |
| 長い説明 | The Screws kit for Din-rail mounting of the sources of grid MEANWELL is used to set the brackets DRL-01, DRL-02, DRL-03 or DRL-03A Din rail along with the mounting clips DRP-02 or DRP-03.The Screw Kit contains:2 Screw-T4 x 6 ISO flat head. Long by 0.9 cm, head Width 0.75 cm2 Washers 4 x 3. Outer diameter of 0.8 cm inner Diameter 0,45 cmThese serve to secure the brackets to the retaining clip.3 Screws T3 x 6 ISO oval head. Long by 0.6 cm Diameter by 0.3 cm Diameter of the head of 0.55 cm3 Washers 4 x 3. Outer diameter of 0.6. Inner diameter 0,4 cmThese are used to fasten the mounting bracket to the power supply.Maximum tightening torque 8 Newtons/cmMake sure that the screw does not exceed the specified length for each model, since they could drill the base plate of the power supply and damage it. If you use the bolts supplied in our kit, use it always in conjunction with the washers provided.The Screw Kit is supplied individually in a bag transparent ZIP-type. |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
The Screws kit for Din-rail mounting of the sources of grid MEANWELL is used to set the brackets DRL-01, DRL-02, DRL-03 or DRL-03A Din rail along with the mounting clips DRP-02 or DRP-03.
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
