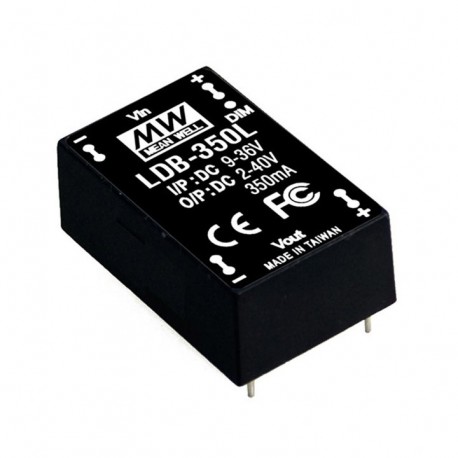

LDB-350L

技術仕様

パラメータ	価値
名前	LDB-350L
州	Recommended Model
形式	Box
シリーズ	LDB-L
調光	Signal PWM 10V
承認	EC
電力（W）	14,00
サブフォーマット	Encapsulated
幅（mm）	20.30
高さ（mm）	12.20
アプリケーション	Lighting, Solar
メーカー	MEAN WELL
製品タイプ	LED Driver
ピーク電力（W）	Fourteen
範囲DC入力	9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36
入力コネクタ	Pin
長文/背景	31.80
長い説明	LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection pins.IP67.Input rangeNine-36Vcc.Output in constant current350mA.Range of output voltage with current mode constantTwoto 40Vccaccording to demand load.Regulator Buck-Boost (Vout >< Vin).Power:14W.Efficiency typical:89%(12vdc)and90% (24vdc).Regulation0% to 100% of the output intensity with a PWM signal.Consumption without load 1mA in power-off mode.Operating temperature range of caseTcfrom-40ºCup+71ºC.Dimensions (Length x Width x Height):31,8 x 20,3 x 12.2 mm.3 years of warranty.Manufacturer: MEAN WELL.The series LDB-L with current regulators intended to power the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal.This series are reducing and lifts voltage (Buck-Boost, Vout >< Vin), which will reduce or increase the input voltage to an output voltage lower or higher by keeping the output current constant. The output must not be connected to the input of the same unit or output from other sources.
出力コネクタ	Pin
保証期間（年）	3,00
原産国	Taiwan
出力電流 mA	Three hundred fifty

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver input and continuous output in a steady stream.
