在庫あり 注目商品

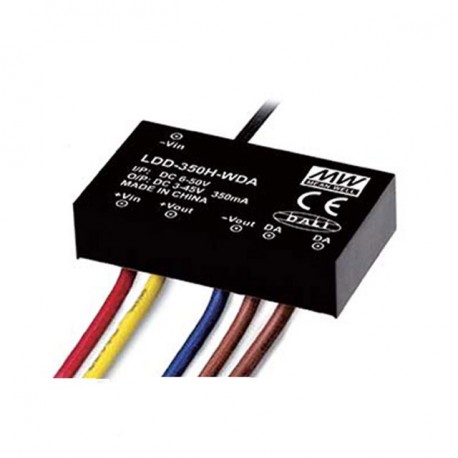

LDD-350H-WDA
LDD-350H-WDA MEANWELL DC-DC Step down LED driver Constant Current (CC), Input 6-50VDC, Output 0.35A / 3-45VD..
$0.00米ドル
3223 在庫あり
主な仕様
名前:LDD-350H-WDA
州:New
ストック:Yes
形式:Box
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | LDD-350H-WDA |
| 州 | New |
| ストック | Yes |
| 形式 | Box |
| シリーズ | LDD-H-WDA |
| 調光 | Analog, DALI, PWM Signal 10V |
| 承認 | EC |
| 電力（W） | 15,70 |
| サブフォーマット | Encapsulated |
| 幅（mm） | 23.50 |
| 高さ（mm） | 10.10 |
| アプリケーション | Lighting, Solar |
| メーカー | MEAN WELL |
| 製品タイプ | LED Driver |
| ピーク電力（W） | 15.7 |
| 範囲DC入力 | 6, 6,5, 7, 8, 8,1, 8,3, 8,4, 9, 9,2, 9,9, 10, 10,5, 10,8, 12, 13,2, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36, 36,4, 38,4, 40, 43, 46,8, 50 |
| 入力コネクタ | Cable |
| 長文/背景 | 40.60 |
| 長い説明 | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection cables.IP65.Input rangeSix-50Vcc.Output in constant current350mA.Range of output voltage with current mode constantThreeto 45Vccaccording to demand load.The output voltage must be at least 3V lower than the input voltage. Regulator Buck (Vout < Vin).Power:15,7 W.Efficiency typical:95%.Regulation DALI0% to 100% of the output intensity. Certificate to DALI.Regulation0% to 100% of the output intensity with a PWM signal or analog from 0.1 to 5V. (Optional).Consumption without load 1mA in power-off mode.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):Age, 40.6 x 23.5 x 10,1 mm.3 years of warranty.Manufacturer: MEAN WELL.The series LDD-H-WDA are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI. Also can be regular (optional) using a PWM signal or analog signal.This series are voltage reducers (designed for buck or step-down) that reduce the input voltage to an output voltage lower while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V lower than the supply voltage. |
| 出力コネクタ | Cable |
| 保証期間（年） | 3,00 |
| 原産国 | Taiwan |
| 出力電流 mA | Three hundred fifty |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
LED driver input and continuous output in a steady stream.
