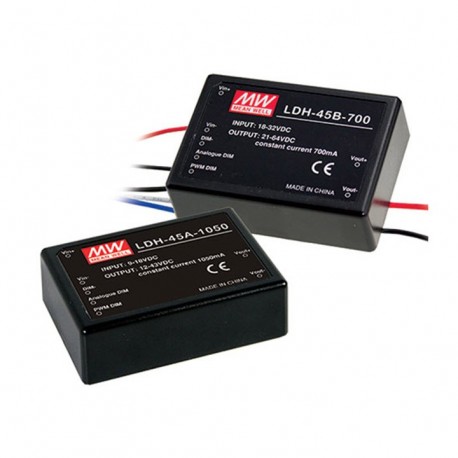

LDH-45B-1050

技術仕様

パラメータ	価値
名前	LDH-45B-1050
州	Recommended Model
形式	Box
シリーズ	LDH-45
調光	Analog, Signal PWM 10V
承認	EC
電力（W）	45,10
サブフォーマット	Encapsulated
幅（mm）	53.00
高さ（mm）	22.70
アプリケーション	Lighting, Solar
メーカー	MEAN WELL
製品タイプ	LED Driver
ピーク電力（W）	45.1
範囲DC入力	18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32
入力コネクタ	Pin
長文/背景	75.00
長い説明	LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection pins.Input rangeEighteen-32Vcc.Output in constant current1050mA.Range of output voltage with current mode constantTwenty oneto 43Vccaccording to demand load.The output voltage must be at least 3V higher than the input voltage.Power:45,1 W.Efficiency typical:95%.Regulation0% to 100% of the output intensity with a PWM signal or analog 0 to 1.3 V.Input class II without grounding.Consumption at no load in 7th in off mode.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):75 x 53 x 22,7 mm3 years of warranty.Manufacturer: MEAN WELL.The series LDH-45 are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal or an analog signal.This series are lifts voltage (design boost or step-up) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V higher than the supply voltage.
出力コネクタ	Pin
保証期間（年）	3,00
原産国	China
出力電流 mA	One thousand fifty

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver input and continuous output in a steady stream.
