LS-H901-Y

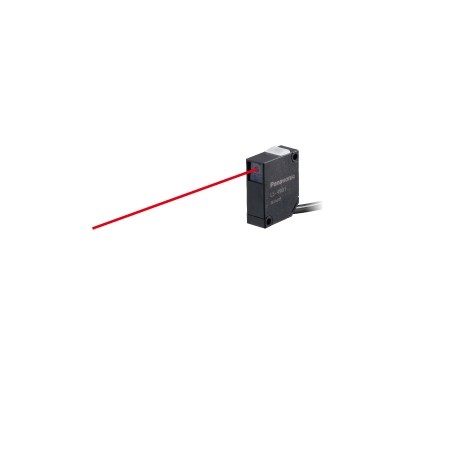

LS-H901-Y PANASONIC Sensor head, retro reflective, range 1m, cable 2m, without reflector
$0.00米ドル
3232 在庫あり
主な仕様
アイテム:Specifications
ケーブル:0.15 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.)
重さ:Net weight: 50 g approx.Gross weight: 85 g approx.
詳細:Sensor heads(Coaxial retroreflective type)
サプライヤー情報
PANASONIC
製品: 4316
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| アイテム | Specifications |
| ケーブル | 0.15 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.) |
| 重さ | Net weight: 50 g approx.Gross weight: 85 g approx. |
| 詳細 | Sensor heads(Coaxial retroreflective type) |
| 製品 | Amplifier-separated Type Digital Laser Sensor |
| 材料 | Enclosure: PBTIndicator cover: PolycarbonateBeam-emitting / receiving surfaces: Glass |
| アクセサリー | MS-LS-1(Mounting bracket): 1pc.RF-330(Refrector): 1pc. |
| スポットサイズ | Approx. dia. 6 mm dia. 0.236 in or less (at a distance from the sensor head of 1 m 3.281 ft) |
| 保護 | IP40 (IEC) |
| 部品番号 | LS-H901-Y |
| 製品名 | Amplifier-separated Type Digital Laser Sensor LS-500 |
| 製品番号 | LS-H901-Y |
| 検知対象 | Opaque, translucent, or transparent object(Note：Make sure to confirm detection with an actual sensor before use.) |
| 周囲の湿度 | 35 to 85 % RH, Storage: 35 to 85 % RH |
| 耐衝撃性 | 100 m / s2 acceleration (10 G approx.) in X, Y and Z directions three times each |
| 検知範囲:HYPR | 0.01 to 2.5m0.033 to 8.202 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 検知範囲:U-LG | 0.01 to 2m0.033 to 6.562 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 周囲照度 | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| 周囲温度 | -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit |
| 操作インジケーター | Orange LED (lights up when the amplifier output is ON) |
| 耐振動性 | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| 適用可能なアンプ | LS-501(P), LS-501(P)-C2(Note：When using the thru-beam typeLS-H101□orLS-H102□, do not set the receiving light sensitivity (gctL) of the applicableLS-500series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.) |
| 発光要素:タイプ | Red semiconductor laser diode |
| 絶縁抵抗 | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| 検知範囲:STDモード | 0.01 to 1m0.033 to 3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 検知範囲:FASTモード | 0.01 to 1m0.033 to 3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 検知範囲:H-SPモード | 0.01 to 1m0.033 to 3.281 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 検知範囲:U-LGモード | 0.01 to 1.5m0.033 to 4.921 ft(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| 耐電圧性 | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| 発光素子:レーザークラス | Class 1 [IEC / JIS / FDA](Note：This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and )Radiological Health) under the FDA (Food and Drug Administration). |
| 発光素子：最大出力 | 1mW |
| CEマーキング指令への準拠 | EMC Directive, RoHS Directive |
| 発光素子:ピーク発光波長 | 660 nm 0.026 mil |
