在庫あり 注目商品
MCSL22108R5

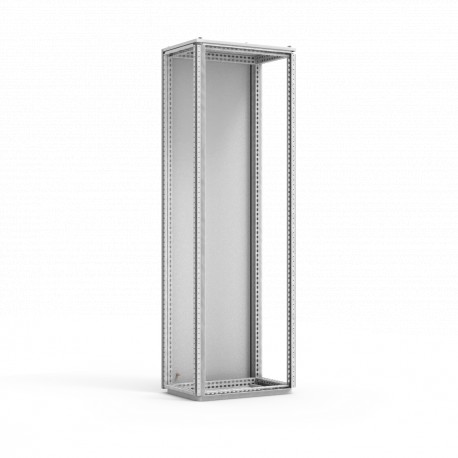

MCSL22108R5 ELDON Self-supporting, 2200x1000x800, combinable, no door, no MP, mild steel
$0.00米ドル
4237 在庫あり
主な仕様
利点: (機能):Providing an application specific product ensures that customers costs are reduced, as the parts of the enclosure that are not required are not received, which in turn increases procurement efficiency.
コメント: (特徴):The enclosure's front opening needs to be fully covered by using specified parts, such as partial doors, DP, or partial panels, DPP, in order to achieve the stated protection degree.
機能: (機能):Mild steel combinable floor standing enclosure, available in a wide range of sizes, without a front door and bottom plates for power distribution applications.
利点: (特徴):A flexible solution where customers can choose enclosures that meet their size requirements, off the shelf, in order to create enclosure configurations made up of smaller individual enclosures. The enclosure's front opening can be segregated by mounting partial panels or doors to meet the requirements of the power and distribution system, for example, for a motor control centre (MCC).
サプライヤー情報
ELDON
製品: 4827
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 利点: (機能) | Providing an application specific product ensures that customers costs are reduced, as the parts of the enclosure that are not required are not received, which in turn increases procurement efficiency. |
| コメント: (特徴) | The enclosure's front opening needs to be fully covered by using specified parts, such as partial doors, DP, or partial panels, DPP, in order to achieve the stated protection degree. |
| 機能: (機能) | Mild steel combinable floor standing enclosure, available in a wide range of sizes, without a front door and bottom plates for power distribution applications. |
| 利点: (特徴) | A flexible solution where customers can choose enclosures that meet their size requirements, off the shelf, in order to create enclosure configurations made up of smaller individual enclosures. The enclosure's front opening can be segregated by mounting partial panels or doors to meet the requirements of the power and distribution system, for example, for a motor control centre (MCC). |
| フレーム: (技術データ) | Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern. |
| 仕上げ: (技術データ) | RAL 7035 structured powder coating. |
| 配送：（技術データ） | Frame, rear and roof panel. Delivery also includes earthing bolts. Delivered on a pallet with identical width of the enclosure to allow suiting without removal. All packing material is recyclable. |
| アース: (技術データ) | All panels are earthed through their fittings and are equipped with a separate earthing stud. |
| 材質: (技術データ) | Frame: 1.5 painted steel. Rear and roof panels: 1.5 mm painted steel. |
| 保護: (技術データ) | IP 44, 55 TYPE 12, 13 IK 10, depending of doors configuration. |
| 背面パネル: (技術データ) | Fitted by M6 torx screws. Standard facilities for rear door mounting. |
| ルーフパネル：（技術データ） | Removable. |
| 取り付け要件: (技術データ) | Standard delivery ready for combined installation. For stand-alone installation add side panels. |
製品説明
The mild steel combinable floor standing enclosure range, MCSL, is available off the shelf in many different sizes, and is ideal for power distribution applications. The front opening can be segregate
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Material:
製品資料
データシート
技術仕様と性能データ
ユーザーマニュアル
設置・操作ガイド
