MPM-30-15ST

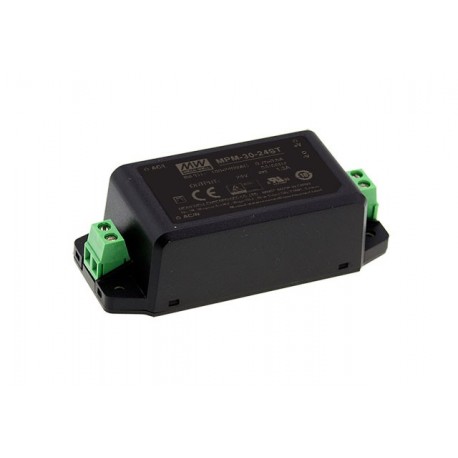

MPM-30-15ST MEANWELL AC-DC Single output Medical Encapsulated power supply, Output 15Vdc at 2A Screw termina..
$0.00米ドル
4331 在庫あり
主な仕様
名前:MPM-30-15ST
州:New
形式:For Printed Circuit
シリーズ:MPM-30ST
サプライヤー情報
MEANWELL
製品: 6448
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 名前 | MPM-30-15ST |
| 州 | New |
| 形式 | For Printed Circuit |
| シリーズ | MPM-30ST |
| 承認 | EC, EAC, EN60601 3rd Edition, UL |
| 電力（W） | 30,00 |
| サブフォーマット | Encapsulated |
| 幅（mm） | 39.50 |
| 高さ（mm） | 28.50 |
| AC入力最大 | 264,00 |
| AC入力最小 | 80,00 |
| アプリケーション | Industrial, Medical, Telecommunications |
| メーカー | MEAN WELL |
| 製品タイプ | Power supply AC/DC |
| 隔離（V） | 4.000,00 |
| 出力電圧 | 15,00 |
| ピーク電力（W） | 34.5 |
| 入力コネクタ | Screw-Type |
| 入力周波数 | 50 Hz, 60 Hz |
| 長文/背景 | 91.00 |
| 長い説明 | Medical power supply for printed circuit board encapsulated.Source certified for medical applications 2x MOPP (patient protection).Encapsulated format for printed circuit with connections of screw.Range of universal input80-264vac.47-63Hz.Voltageoutput15vdc.Intensity ofoutput2A(2.3 To max). Range of output current 0-2A according to demand load.Power:30W(34,5 W for 10s).Efficiency typical:89%.Consumption without load<0,075 W.Protection against short circuit, over load, over voltage and temperature.Requires No minimum load.Level of vibration up to 5G.Input class II without grounding. EMI class B.Low leakage current < 80µA to 264vac.Working temperature: from-35up+85 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:69,5 x 39 x 24.3 years of warranty.Manufacturer: MEAN WELL.The series MPM are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. With low power consumption at no load and requires no minimum load. It has been designed for the most demanding applications at the level of vibration (5G). Sources with class II non-grounded. With an excellent heat dissipation and high useful life thanks to its encapsulation. Version ST incorporates inlet and outlet connection screw.These sources can be used for medical applications BF (body floating) with the necessary considerations of the system and for industrial applications and technology |
| 出力コネクタ | Screw-Type |
| 入国の種類 CA | Single-phase |
| 保証期間（年） | 3,00 |
| 原産国 | China |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
Medical power supply for printed circuit board encapsulated.
