NA5-15W101B

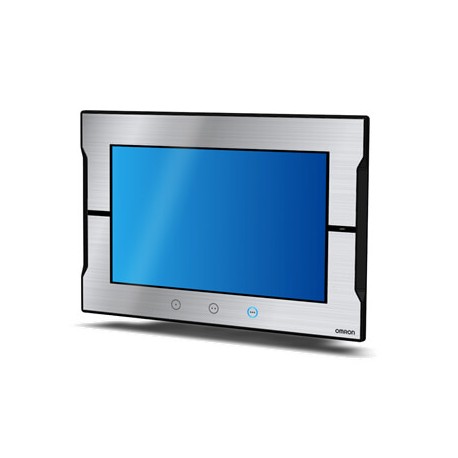

NA5-15W101B 392731 NA579008M OMRON Interface Sysmac NA, 15.4"", 1280x800, TFT 16.7 mill. colors, Black
$0.00米ドル
3321 在庫あり
主な仕様
4ギガバイト:HMC-SD491
8GB:FZ-MEM8G
アイテム:Specification
タイプ:Specifications
サプライヤー情報
OMRON
製品: 41472
通常、2〜3営業日以内に出荷します
品質保証済み
高速配送
テクニカルサポート
技術仕様
| パラメータ | 価値 |
|---|---|
| 4ギガバイト | HMC-SD491 |
| 8GB | FZ-MEM8G |
| アイテム | Specification |
| タイプ | Specifications |
| 黒 | NA5-15W101B |
| 重さ | 3.2 kg max. |
| 画面 | Colors |
| NA5-15W_ | NA5-12W_ |
| 雰囲気 | Must be free from corrosive gases. |
| NA5-7W用 | NA-7WKBA04 |
| NA5-9W用 | NA-9WKBA04 |
| USBメモリ | 2 GB |
| NA5-12W用 | NA-12WKBA04 |
| バッテリー寿命 | Battery life: 5 years at 25°CThe RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) |
| ノイズ耐性 | 2 kV on power supply line (Conforms to IEC 61000-4-4.) |
| SDメモリーカード | 2 GB |
| 仕様 | Order code |
| 汚染度 | 2 or less: JIS B 3502, IEC 61131-2 |
| 消費電力 | 47 W max. |
| 交換用バッテリー | Battery life: 5 years (at 25°C). This Battery is provided as an accessory. |
| 保護の程度 | Front-panel controls: IP65 oil-proof type, UL type 4X (using a high pressure waterproof attachment (PWA)) |
| 寸法（幅×高さ×奥行き） | 420 × 291 × 69 mm |
| 定格供給電圧 | 24 VDC |
| 反射防止シート | Attach a Sheet to the screen to protect against diffused reflections and dirt.The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
| 国際基準 | UL 508/CSA standard C22.2 No.1424EMC Directive (2004/108/EC) EN 61131-2:2007Shipbuilding standards LR, DNV, and NKIP65 oil-proof, UL type 4X (front panel only and using a high pressure waterproof attachment (PWA))ANSI 12.12.01 Class 1 Division 2/CSA standard C22.2RoHS Directive (2002/95/EC)KC Standards KN 61000-6-2:2012-06 for EMS and KN 61000-6-4:2012-06 for EMIRCM |
| パネルカットアウト寸法 | 392 × 268 mm(horizontal × vertical)Panel thickness: 1.6 to 6.0 mm |
| 動作周囲湿度 | 10 to 90%2Must be no condensation. |
| 7インチワイドスクリーン、TFT LCD | 800 × 480 pixels |
| 9インチワイドスクリーン、TFT LCD | 800 × 480 pixels |
| 保管周囲温度 | −20 to +60°C3 |
| 周囲動作温度 | 0 to 50°C12 |
| 12.1インチワイドスクリーン、TFT LCD | 1280 × 800 pixels |
| 15.4インチワイドスクリーン、TFT LCD | 24 bit full color |
| 耐衝撃性（動作時） | Conforms to IEC 60028-2-27.147 m/s2 3 times each in X, Y, and Z directions |
| 許容電源電圧範囲 | 19.2 to 28.8 VDC (24 VDC ±20%) |
| Sysmac Studio バージョン 1.10 以上 | SYSMAC-SE2___ |
| 耐振動性（動作中） | Conforms to IEC 60068-2-6.5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2for 100 minutes each in X,Y, and Z directions(Time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 min.) |
| Sysmac Studio HMI Edition 1.10以上 | SYSMAC-HE001L |
| 高圧防水アタッチメント（ULタイプ4X） | Use of the high pressure waterproof attachment (PWA) is required to meet UL Type 4X approval where panel thickness is between 1.6 to 4.5 mm.Four PWA models are available for each NA screen size. |
製品説明
More details
主な機能
- 産業グレードの品質
- RoHS準拠
- CE認証取得
- 1年保証
技術的詳細
An HMI that is dynamic, intuitive and predictive makes industrial machines more attractive and competitive. Our Sysmac HMI enables faster, more efficient control and monitoring—and a more natural, proactive relationship between operator and machine.
