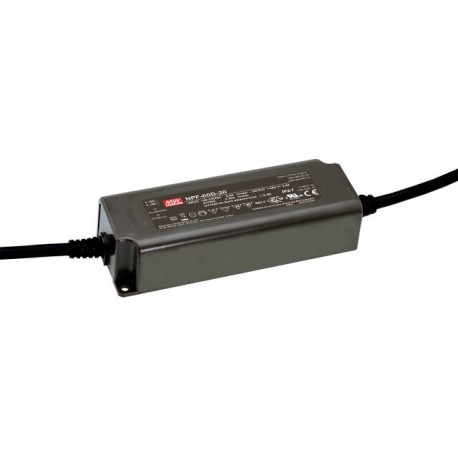

NPF-60D-30

技術仕様

パラメータ	価値
名前	NPF-60D-30
州	Recommended Model
ストック	Yes
形式	Box
シリーズ	NPF-60D
調光	0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V
承認	CCC, CE, ENEC, UL
電力（W）	60,00
サブフォーマット	IP67
幅（mm）	53.00
高さ（mm）	35.00
AC入力最大	305,00
AC入力最小	90,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	Sixty
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	150.00
長い説明	LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in box Waterproof plasticIP67.Input range90-305Vca47-63Hz.Output in constant current2A.Range of output voltage18 to 30vdcaccording to demade the load.Power:60W.Efficiency typical:90%.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class II without grounding.Factor corrector, power>0,95to 230vac at full load.Consumption without load <0,50 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):150 x 53 x 35mm.5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 12V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	Two thousand
最小出力強度（mA）	2.000,00
出力最大強度（mA）	2.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver dimmable.

製品資料

データシート

技術仕様と性能データ

ユーザーマニュアル

設置・操作ガイド
