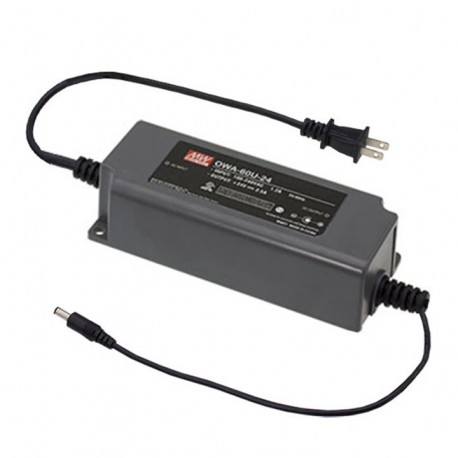

OWA-60U-20

技術仕様

パラメータ	価値
名前	OWA-60U-20
州	New
形式	Box
シリーズ	OWA-60
承認	UL
電力（W）	60,00
サブフォーマット	IP67
幅（mm）	53.00
高さ（mm）	35.00
AC入力最大	264,00
AC入力最小	90,00
アプリケーション	Industrial, Telecommunications
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	Sixty
入力コネクタ	Pin American
入力周波数	50 Hz, 60 Hz
長文/背景	130.00
長い説明	LED driver.Specially designed for powering LEDs directly in a steady stream.Format in box waterproof plasticIP67.Range of universal input90-264Vac47-63Hz.Output in constant current3A.Range of output voltage with current mode constant10 to 20vdcaccording to demand load.Power:60W.Efficiency typical:88%.Input class II without grounding.Consumption without load<0,15 W.Operating temperature range of caseTcfrom-35ºCup+70ºC.Dimensions (Length x Width x Height):130 x 53 x 35mm.5 years warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 20V, if a load is fed at constant voltage and does not overcome the maximum output power.With plastic housing waterproof IP67 suitable for outdoor use. Intended for electronic products that are used in dusty environments or wet (lawn, home appliances...). Also suitable for interior, office and decoration.The series OWA-60U has input connector americanNEMA 1-15Pand output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive.
出力コネクタ	P1J Tunnig Fork 5.5 x 2.1 x 11. C+
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	Three thousand
最小出力強度（mA）	3.000,00
出力最大強度（mA）	3.000,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.

製品資料

データシート

技術仕様と性能データ

ユーザーマニュアル

設置・操作ガイド
