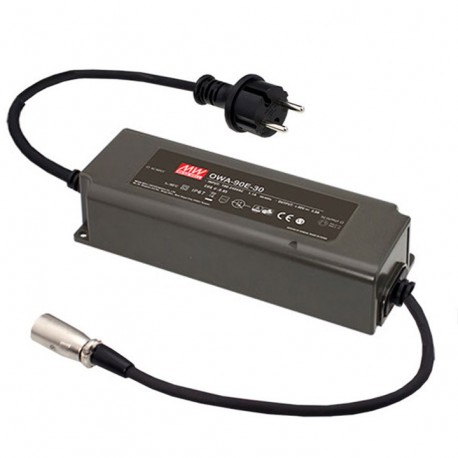

OWA-90E-36

技術仕様

パラメータ	価値
名前	OWA-90E-36
形式	Box
シリーズ	OWA-90
承認	EC
電力（W）	90,00
サブフォーマット	IP67
幅（mm）	63.00
高さ（mm）	37.50
AC入力最大	264,00
AC入力最小	90,00
アプリケーション	Industrial, Telecommunications
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	Ninety
入力コネクタ	European Plug
入力周波数	50 Hz, 60 Hz
長文/背景	171.00
長い説明	LED driver.Specially designed for powering LEDs directly in a steady stream.Format in box waterproof plasticIP67.Range of universal input90-264Vac47-63Hz.Output in constant current2,5 A.Range of output voltage with current mode constant21.6 to 36Vccaccording to demand load.Power:90W.Efficiency typical:91%.Input class II without grounding.Factor corrector, power>0.96to 230vac at full load.Consumption without load<0,15 W.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):171 x 63 x 37.5 mm5 years warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.With plastic housing waterproof IP67 suitable for outdoor use. Intended for electronic products that are used in dusty environments or wet (lawn, home appliances...).The series OWA-90E has input connector europeanCEE7/7and output connector type XLR-4P.
出力コネクタ	XLR 4P
入国の種類 CA	Single-phase
保証期間（年）	5,00
原産国	China
出力電流 mA	Two thousand five hundred
最小出力強度（mA）	2.500,00
出力最大強度（mA）	2.500,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver.
