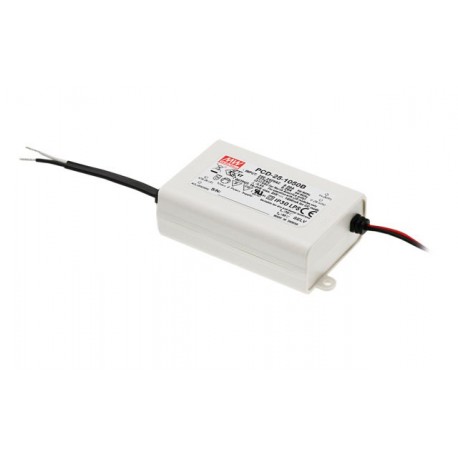

PCD-25-350B

技術仕様

パラメータ	価値
名前	PCD-25-350B
形式	Box
シリーズ	PCD-25
調光	Triac
承認	CE, ENEC, UL
電力（W）	20,30
サブフォーマット	IP42
幅（mm）	57.00
高さ（mm）	29.50
AC入力最大	295,00
AC入力最小	180,00
アプリケーション	Lighting
メーカー	MEAN WELL
製品タイプ	LED Driver
隔離（V）	3.750,00
ピーク電力（W）	20.3
入力コネクタ	Cable
入力周波数	50 Hz, 60 Hz
長文/背景	84.00
長い説明	LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP42.Input range180-295Vca47-63Hz.Output in constant current350mA.Range of output voltage40 to 58Vccaccording to demand load.Power:The 20.3 WEfficiency typical:82%.AdjustablebyTriac.Input class II without grounding.Factor corrector, power>0,9to 230vac at full load.Operating temperature range of caseTcfrom-35ºCup+60ºC.Dimensions (Length x Width x Height):84 x 57 x 29.5 mm3 years of warranty.Manufacturer: MEAN WELL.The series PCD are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing designed for lighting applications in interior.Can be controlled via TRIACs (regulators that cut the voltage input). See the list of Triacs supported in the technical data sheet.(Not to be confused with dimmers 1-10V. This driver not only can be adjusted by Triac. Check that your dimmer is a Triac, it must have a Line input and a Line Output for connecting to the driver, not an output 1-10V).Protection against excess temperature and short circuit.Tests burn-in (burn-in test) at 100% load. Have a low cost and a high reliability.
出力コネクタ	Cable
入国の種類 CA	Single-phase
保証期間（年）	3,00
原産国	China
出力電流 mA	Three hundred fifty
最小出力強度（mA）	350,00
出力最大強度（mA）	350,00

製品説明

More details

主な機能

産業グレードの品質
RoHS準拠
CE認証取得
1年保証

技術的詳細

LED driver dimmable.
